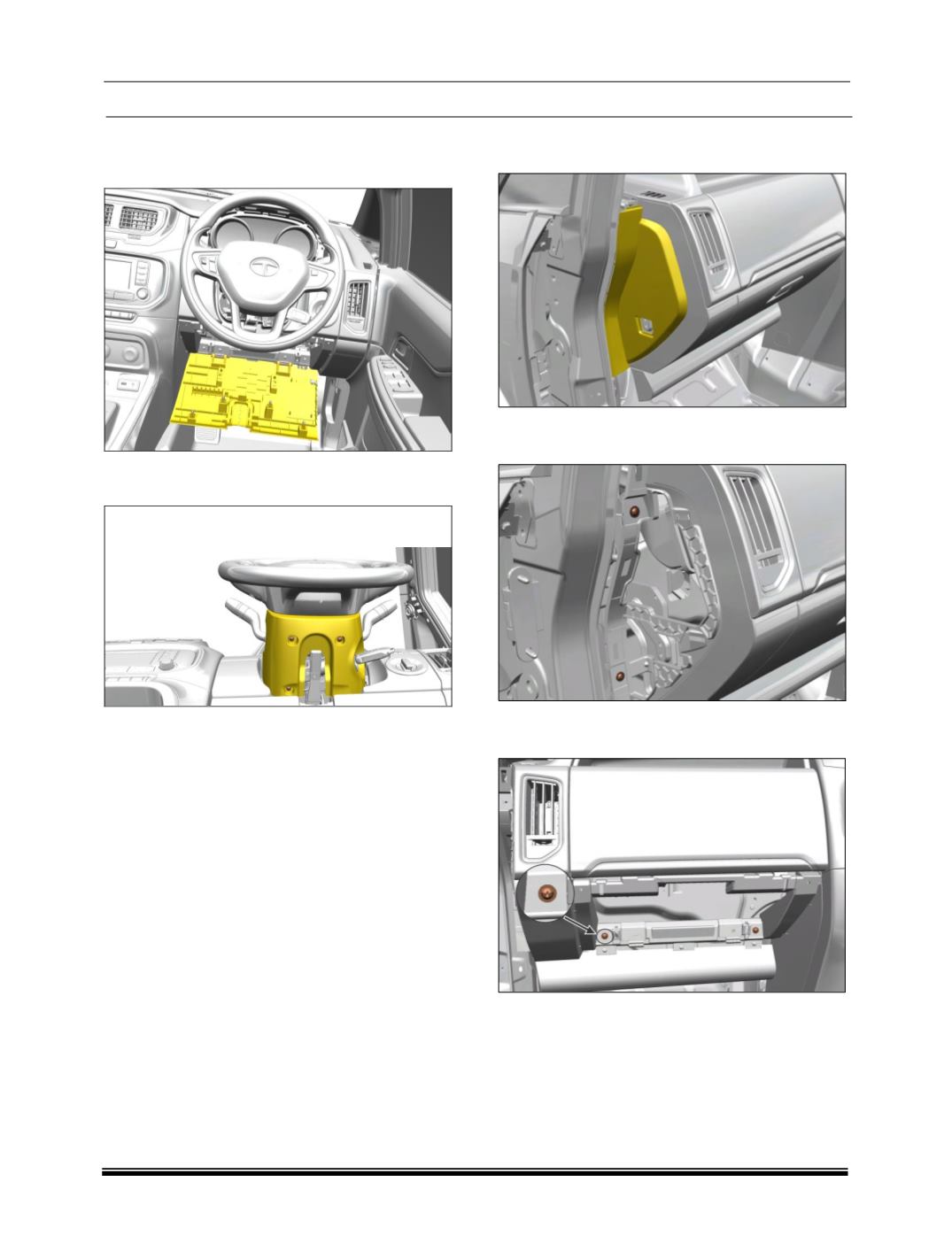

11. Remove cover hinge pin by pressing and
pulling it outwards and take out the lower
cover of steering column
12. Remove the lower steering nacelle cover by
loosening 3nos screws from below.
13. Disconnect the connectors of combi switch.
(Refer Electrical section for Combi switch
removal procedure)
14. Remove glove box. (For procedure refer glove
box removal procedure.)
15. Remove top utility bin. (For procedure refer top
utility bin removal.)
16. Remove centre console. (For procedure refer
centre console removal procedure.)
17. Remove floor console. (For procedure refer
floor console removal procedure.)
18. Remove the PAB switch (In case of air bag
version only)
19. Loosen and remove two mounting which are
behind the end cover cap.
20. Loosen and remove two mountings which are
behind the end cover cap.
21. Loosen and remove two mounting screws
which are behind glove box.
