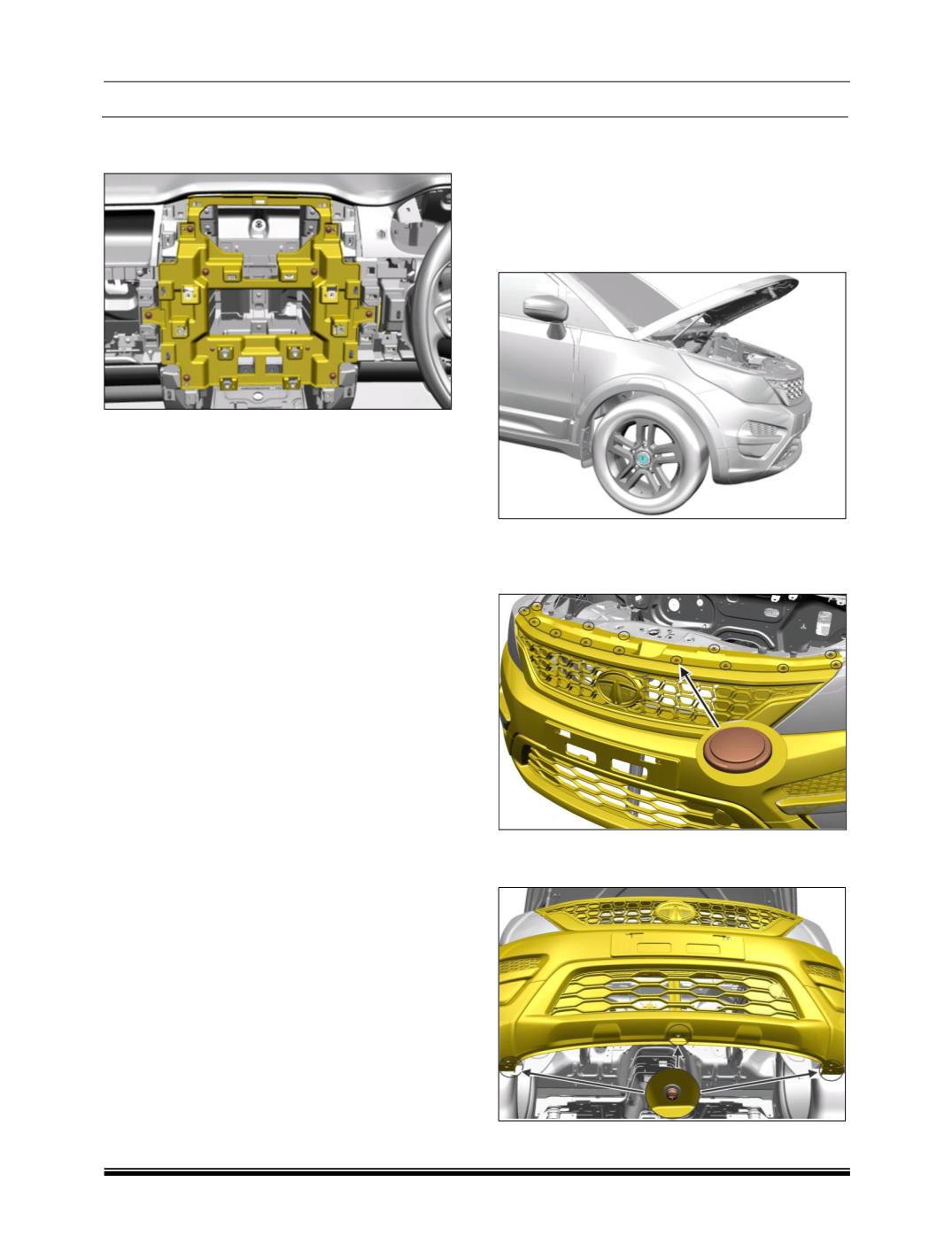

10. Loosen and remove 10 mounting bolts and

take centre finisher.

ASSEMBLY:

For assembly follow the reverse procedure of

removal

E. FRONT BUMPER

REMOVAL:

1. Steer the front wheel to full turn position for

ease of access.

2. Open the bonnet and remove the upper

sealing duct and upper sealing duct.

3. Loosen and remove fourteen plastic clip

fasteners and remove upper cover of front

bumper.

4. Loosen three mounting three screws from the

bottom of the bumper.
