SUSPENSION

18

B. XB PETROL VARIENT

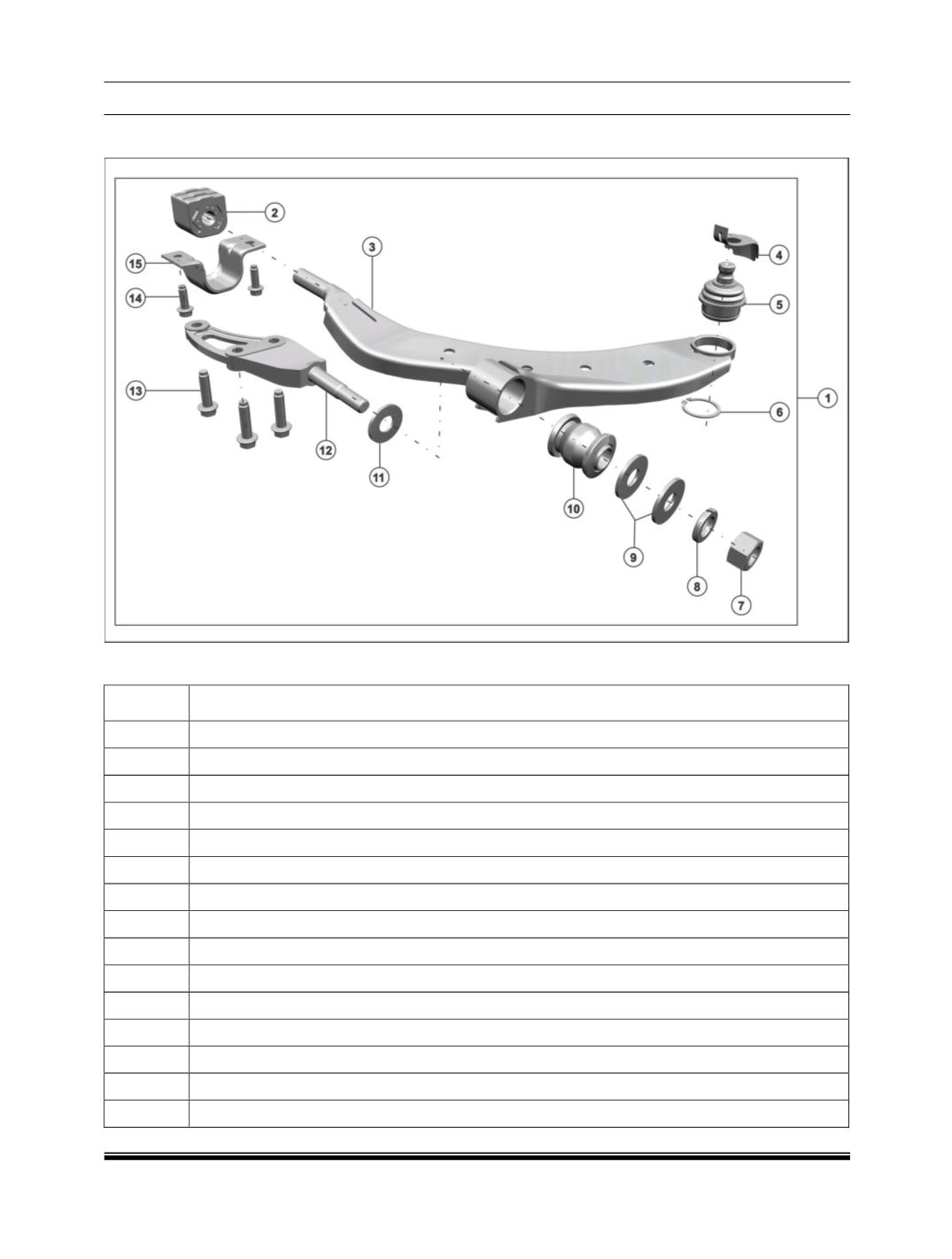

FIG. 5b

SR NO.

DESCRIPTION

1

ASSEMBLY LOWER CONTROL ARM COMPLETE

2

REAR RUBBER BUSH

3

ASSEMBLY LOWER CONTROL ARM WELDED STRUTURE

4

LOWER BALL JOINT HEAT SHIELD

5

LOWER BALL JOINT (FRONT SUSPENSION)

6

EXTERNAL CIRCLIP

7

HEX NUT M16X1.5 IS13722-8-SS8451S2-Y

8

SPRING LOCK WASHER H JISB1251

9

WASHER

10

ASSY FRONT PIVOT BUSH (FRONT SUSPENSION)

11

WASHER

12

MOUNTING PIN (LOWER CONTROL ARM MTG)

13

HEX FL SCR M12X30 TS17130-8.8-SS8451-8C

14

HEX FL SCR M12X30 TS17130-8.8-SS8451-8C

15

CLAMP (LOWER LINK REAR MTG BKT)
