SUSPENSION
17

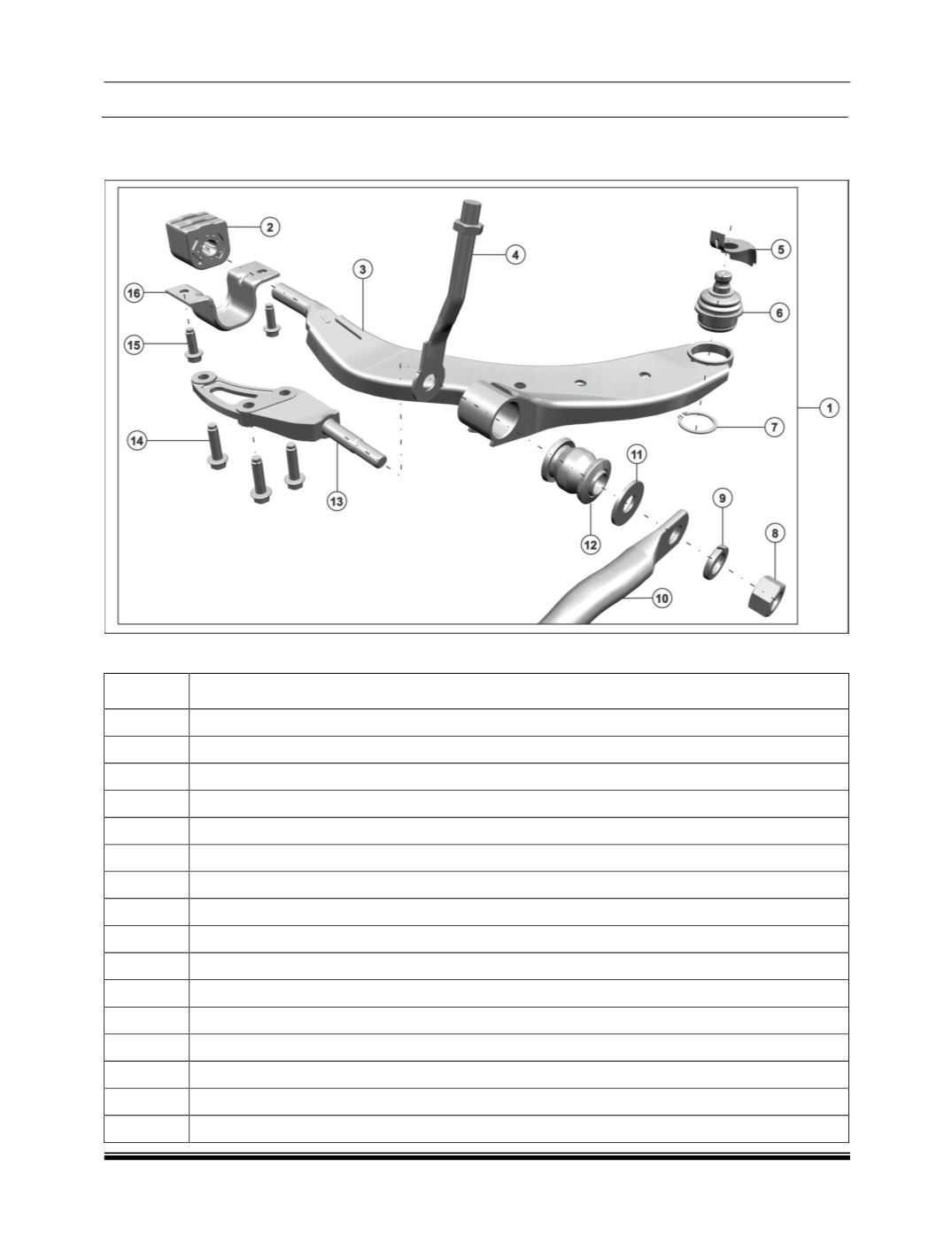

5.6.2. LOWER ARM EXPLODED VIEW
A. EXCLUDING XB PETROL VARIANT
FIG. 5a
SR NO.
DESCRIPTION
1
ASSEMBLY LOWER CONTROL ARM COMPLETE
2
REAR RUBBER BUSH
3
ASSEMBLY LOWER CONTROL ARM WELDED STRUTURE
4
VERTICAL MEMBER LOWER ASSY
5
LOWER BALL JOINT HEAT SHIELD
6
LOWER BALL JOINT (FRONT SUSPENSION)
7
EXTERNAL CIRCLIP
8
HEX NUT M16X1.5 IS13722-8-SS8451S2-Y
9
SPRING LOCK WASHER H JISB1251
10
TIE MEMBER FRONT SUSPENSION
11
WASHER
12
ASSY FRONT PIVOT BUSH (FRONT SUSPENSION)
13
MOUNTING PIN (LOWER CONTROL ARM MTG)
14
HEX FL SCR M12X30 TS17130-8.8-SS8451-8C
15
HEX FL SCR M12X30 TS17130-8.8-SS8451-8C
16
CLAMP (LOWER LINK REAR MTG BKT)
