1.05L REVOTORQ ENGINE
116

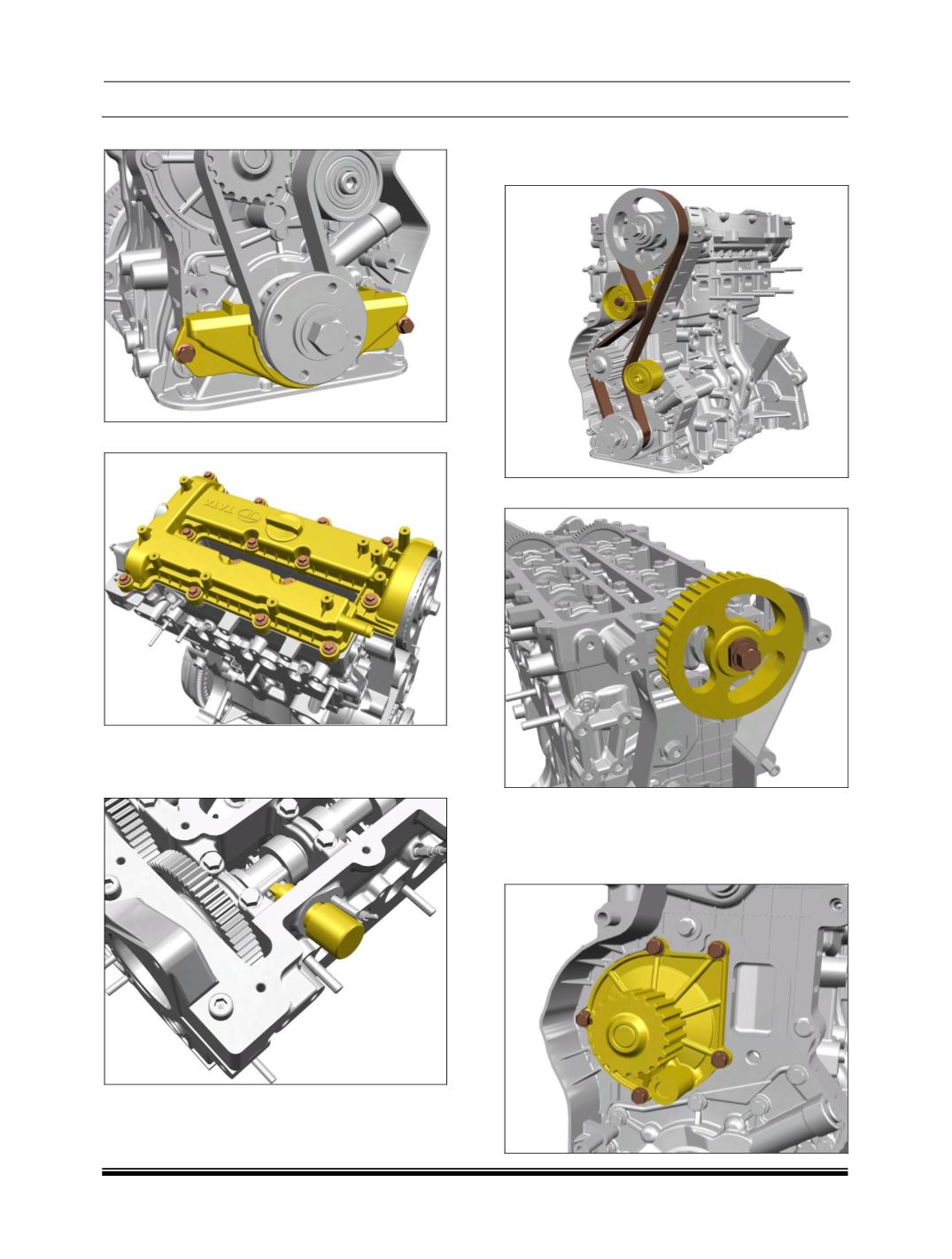

4. Remove the front cover bottom.
5. Remove the cylinder head cover assembly.
6. Remove the flywheel locking pin.
7. Insert the camshaft locking pin to lock
camshaft by rotating flywheel.
8. Loosen and remove auto tensioner and idler
bolt and take out the auto tensioner, idler and
timing belt.
9. Remove the camshaft timing gear.
10. Lock the flywheel by using flywheel locking
pin.
11. Remove camshaft locking pin.
12. Remove the water pump.
