1.05L REVOTORQ ENGINE
119

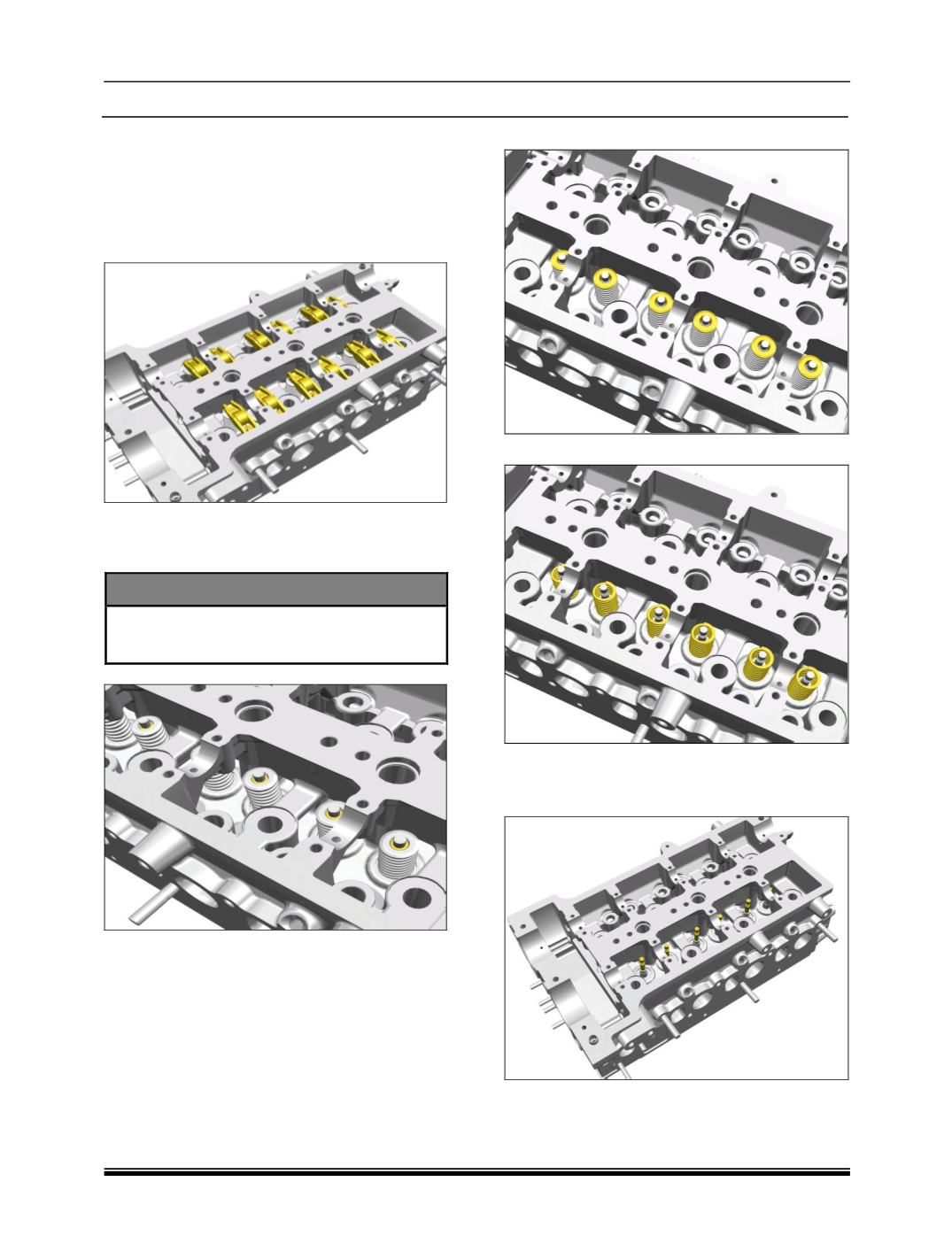

vii. REMOVAL OF CYLINDER HEAD SUB-
ASSEMBLIES :
1. Remove all the roller finger followers (RFF)
along with hydraulic lash adjusters (HLA) by
lifting them vertically and placing them in
correct sequence and in vertical direction only
to avoid oil drain from HLA.
2. Using valve spring compressor (2868 5890 06
02), compress
valve springs and remove lock
halves
.
SPECIAL TOOL
Valve Spring Compressor -:
2868 5890 06 02
3.
Remove the valve springs retainers.
4.
Remove the valve springs.
5.
Remove the valve guide seals and take out the
spring seats.
6.
Remove the valves
(Inlet and Exhaust).
7.
Remove the cylinder head gasket.
