1.05L REVOTORQ ENGINE

122

6.

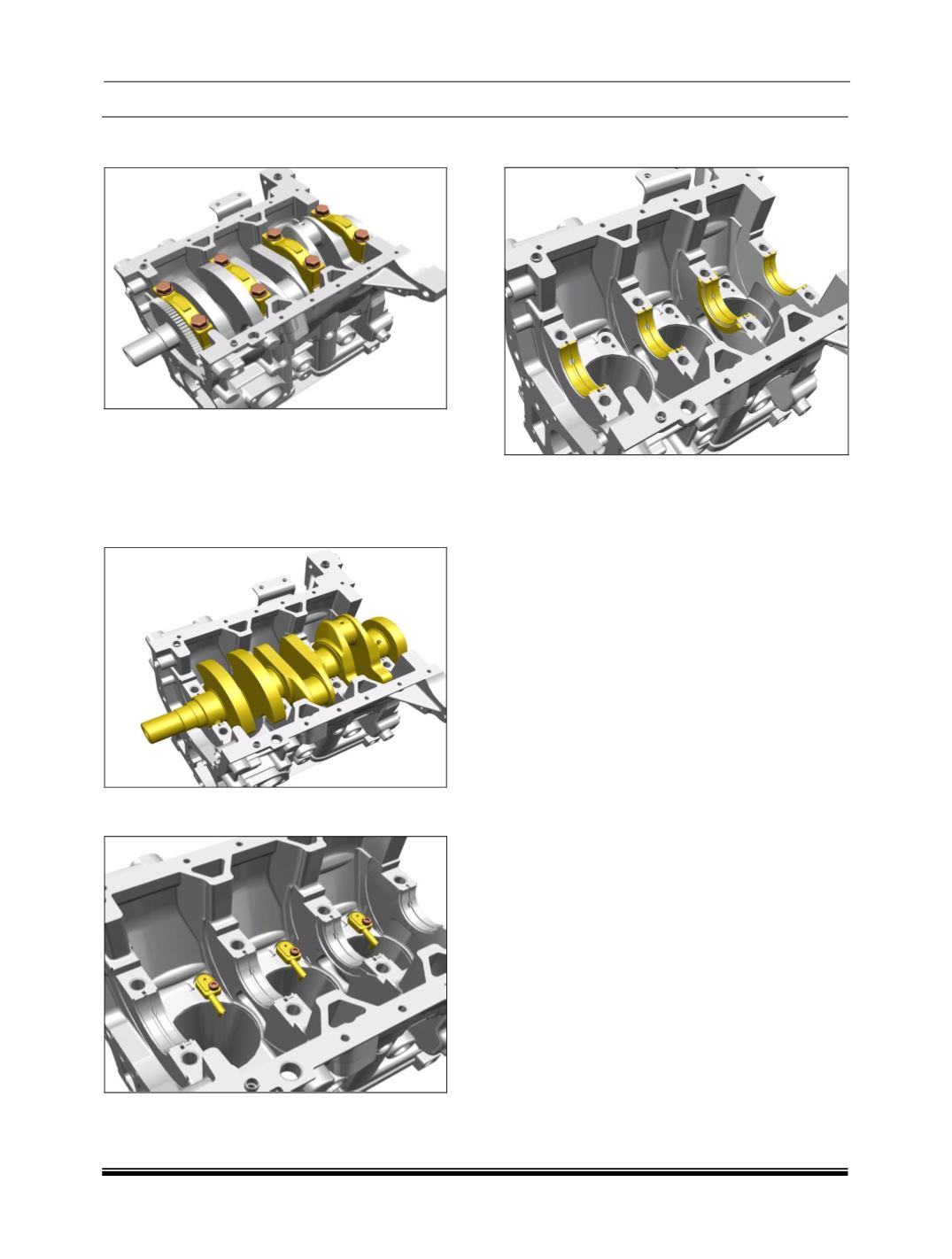

Unscrew and remove main bearing-cap

mounting bolts.

Note:

Mark the bearing cap locations. Follow the

following sequence for removing;

1

st

and 2

nd

and 4

th

and lastly 3

rd

.

7.

Take out the Crankshaft from the cylinder

block.

8.

Remove Allen screws and take out all piston

cooling nozzles.

9. Remove Main Bearing Shells and Thrust

Washers.
