1.05L REVOTORQ ENGINE
118

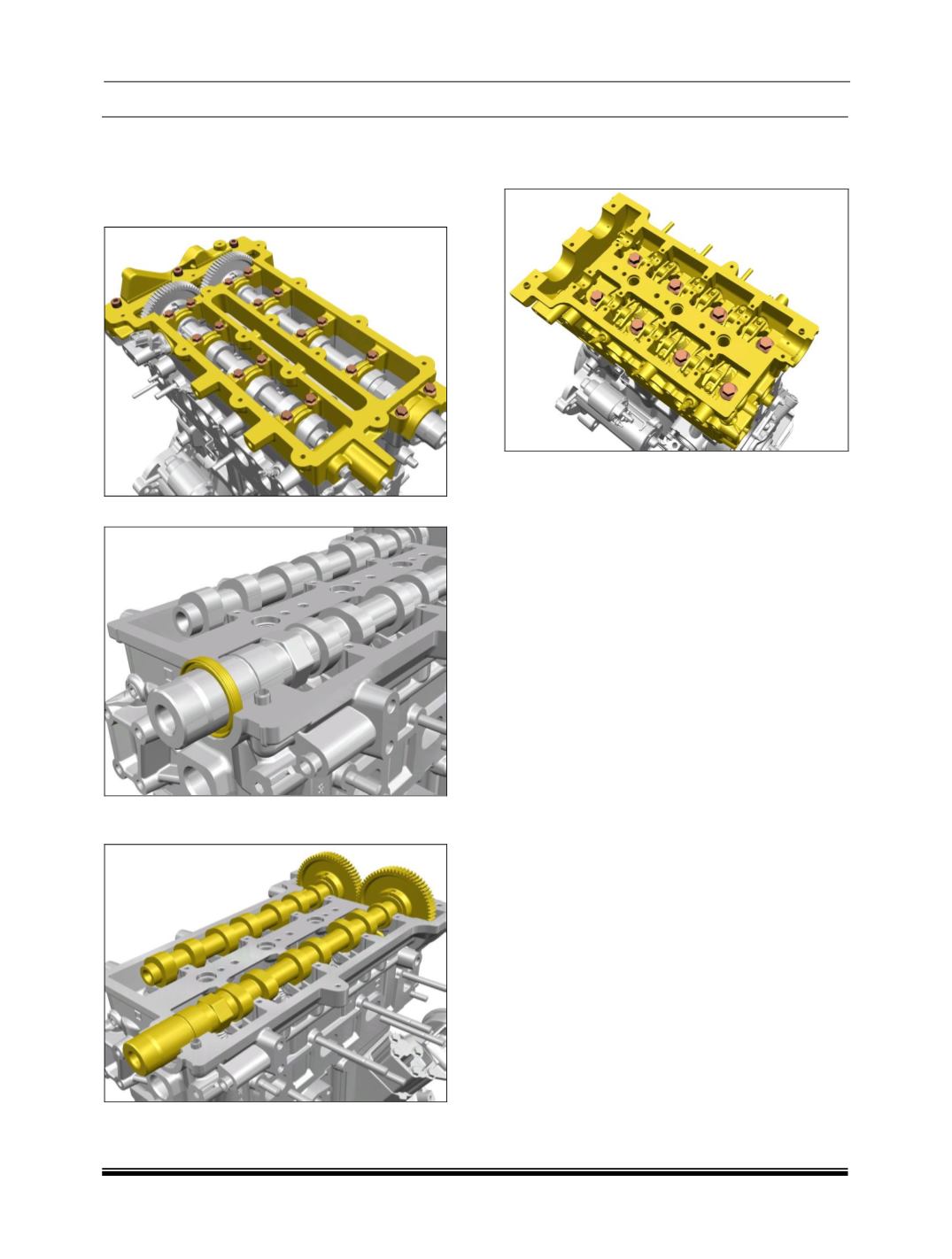

vi. REMOVAL OF CYLINDER HEAD :
1. Remove the bearing frame by loosening the
mounting bolts in proper sequence
(Loosen
the bolts from outer to inner side)
.keep the
bearing frame on a work bench.
2. Slightly remove the oil seal of cam shaft.
3. Remove the exhaust and intake cam shaft
from cam carrier.
4.
Unscrew and remove the cylinder head
mounting bolts from the outer to inner, in
specified sequence
.
NOTE
Gently place the cylinder head on a table with
clean surface, and take care to avoid damage to
the head surface, valves and glow plug
projections
.
5.
Slightly lift the cylinder head to clear locating
hollow dowel in crank case, and place it on a
table
.
