308 / 1002
1.05L REVOTORQ ENGINE
97

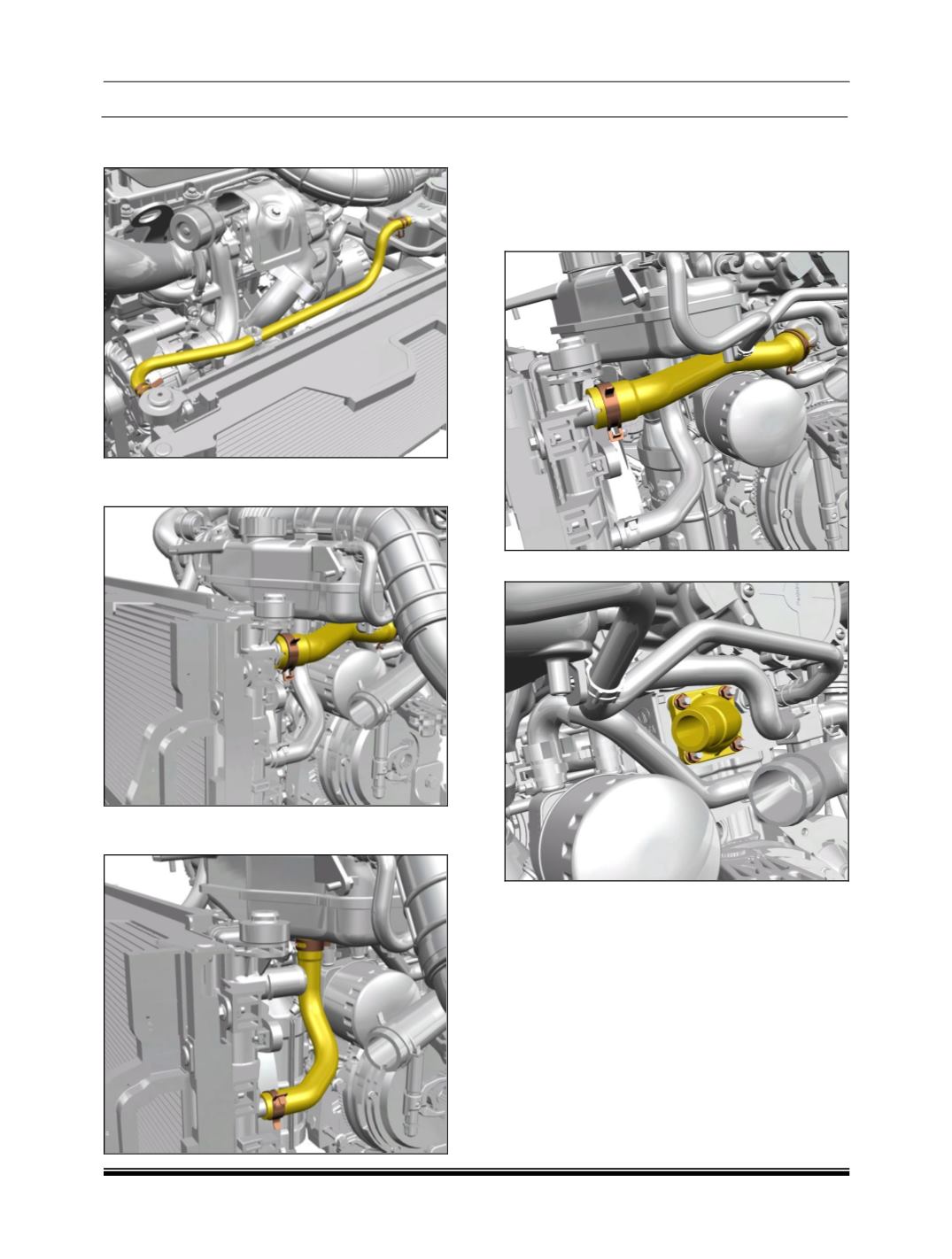

3. Remove hose between Radiator and
Aux.Tank).
4. Remove hose between Thermostat to
Radiator.
5. Remove hose between Aux. tank and
Radiator.
C. Thermostat :
Removal :
1. Drain the coolant.
(Refer "Coolant
Replacement Procedure).
2. Remove the spring band clip and disconnect
the hose.
3. Remove the cover mounting nuts.
4. Remove the cover and thermostat from the
housing. Replace the gasket while refitting.
Fitment :
For fitment follow the reverse order of
removal. Tighten fasteners to the recommended
torque.
