1.05L REVOTORQ ENGINE
99

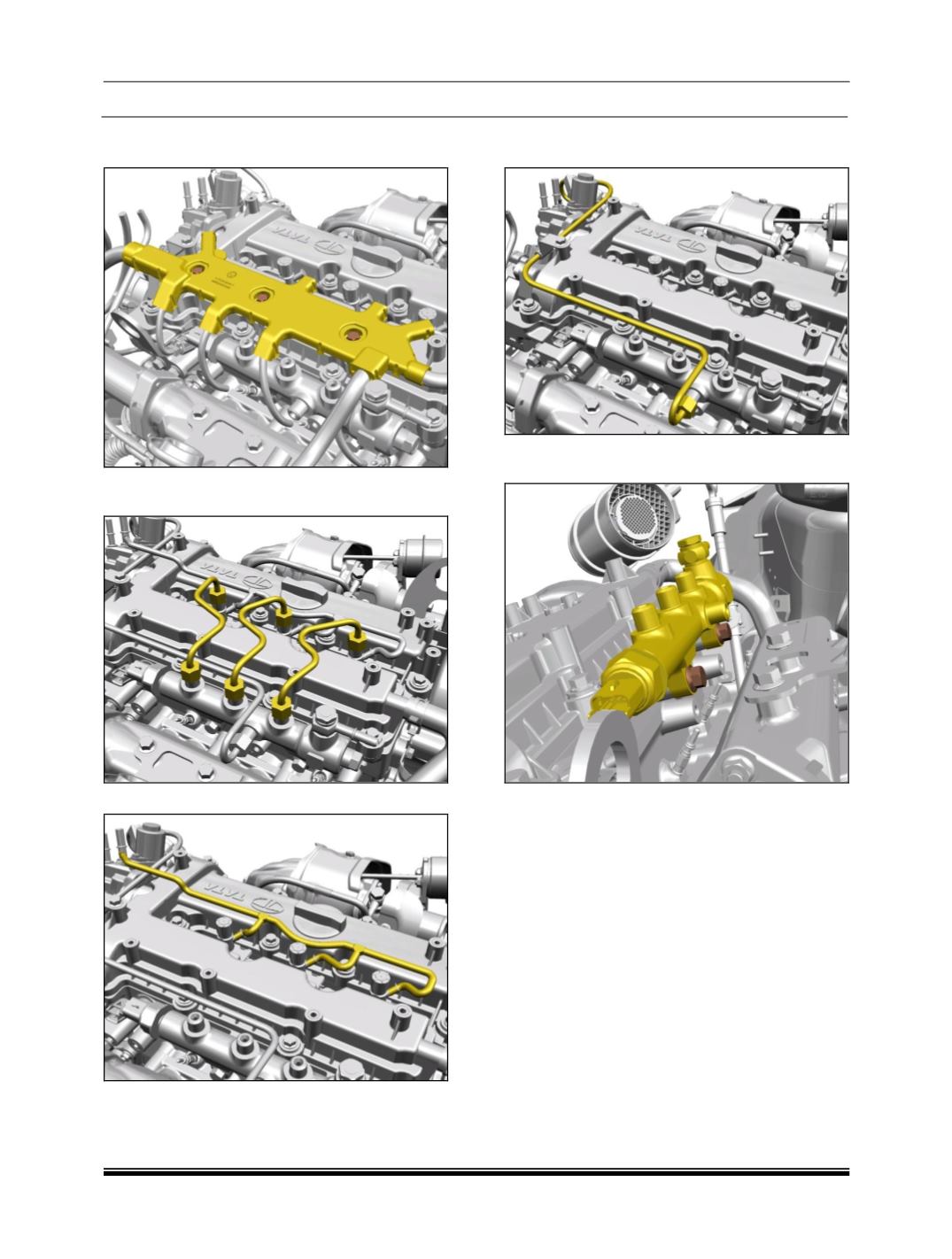

5. Loosen and remove EMS plastic channel
assembly mounting screw.
6. Remove HP pipes connected between the
common rail and injectors.
7. Remove Back Leak Hose Assembly.
8. Loosen and remove fuel pressure line (Pump
to Rail)
9. Loosen and remove fuel rail mounting hex
flange screw.
10. Take out the assembly fuel rail.
