1.05L REVOTORQ ENGINE

96

D. COOLING SYSTEM :



On Vehicle Repairs :

A. Intercooler :

Removal :

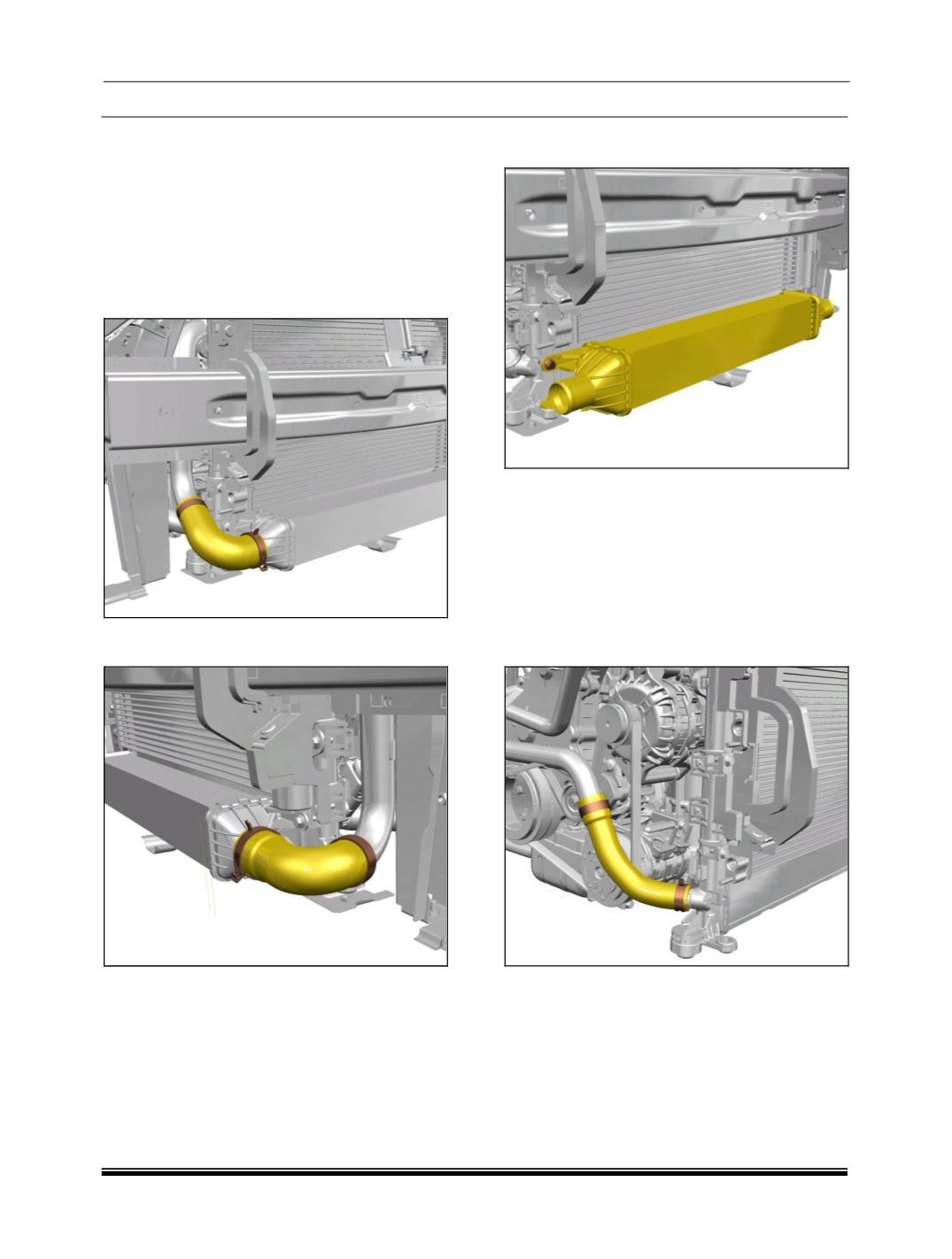

1. Remove the front bumper. (Refer front

bumper removal procedure from body

section).

2. Loosen spring clamp and disconnect the

intercooler inlet hose.

3. Loosen spring clamp and disconnect the

outlet hose.

4. Loosen and remove the 2 bolts and take out

the intercooler assembly.

Fitment :

For fitment follow reverse procedure for

removal.

B. Radiator :

Removal :

1. Drain the coolant and remove the coolant

tank. (For procedure refer "Coolant

replacement" in Engine Maintenance section)

2. Disconnect the radiator integral hose.
