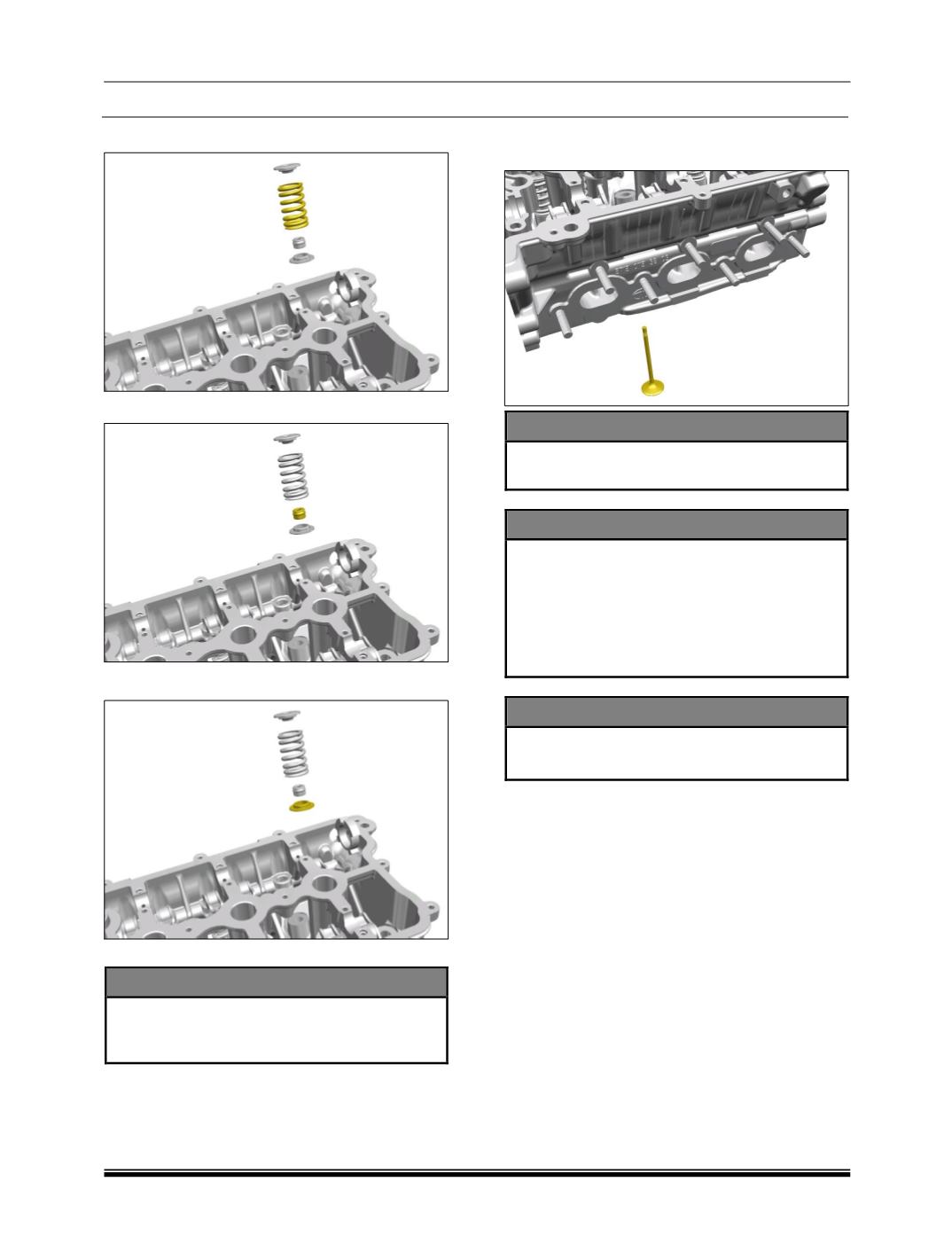

4. Remove the valve spring.
5. Remove the valve guide seal.
6. Remove the spring seat.
NOTE
Valve guide cannot be removed directly as
it is press fit, first tilt the head and remove
valves from bottom.
7. Remove the Intake valve and exhaust Valve
from cylinder head.
SPECIAL TOOL
Valve Spring Compression Support Rail -
5424 5890 06 06
NOTE
When removing the valves, valve springs
and retaining components, note the
location of each and keep these
components together so the valves,
springs and retaining components are
installed in the same location in the
cylinder head during reassembly.
SPECIAL TOOL
Valve Spring Compression Tool -
2829 5890 06 05
8. Move the valve spring compressor rail to the
exhaust side of the cylinder head.
9. Repeat the procedure for exhaust port, noting
the locations and components for each valve
for proper reassembly.
