1.2L REVOTRON ENGINE
117

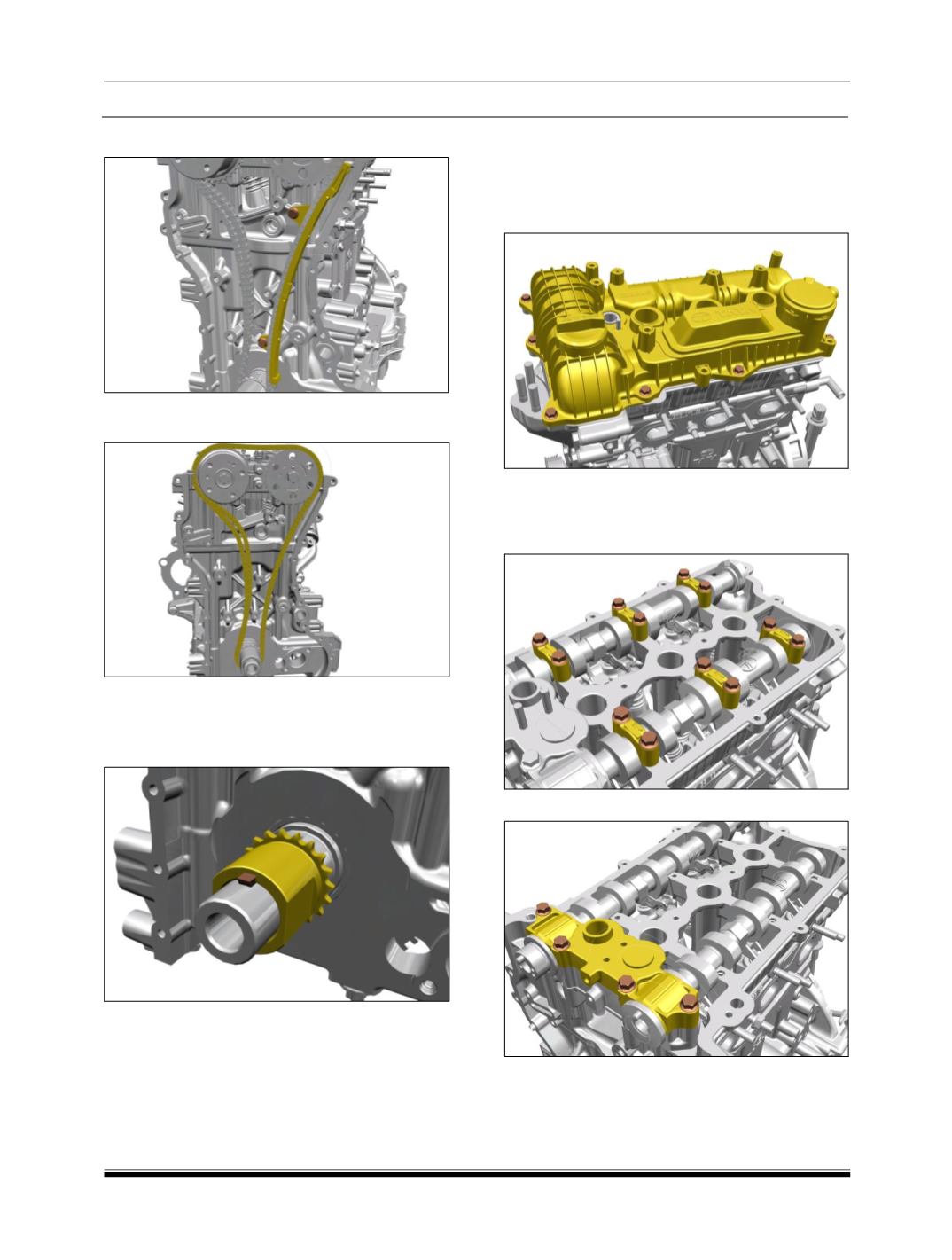

9. Remove fixed guide rail.
10. Remove the Timing chain from the gear train
assembly.
11. Remove the VCT and exhaust camshaft
sprocket.
12. Remove the crankshaft sprocket by removing
key.
VII. Removal of Cylinder Head and
Camshaft.
1. Remove the Cylinder Head Cover from the
engine & carefully placed the rubber gasket
apart.
2. Remove the Cylinder Head attaching bolts
along with the washers, starting from the ends
of the cylinder head and working inwards to
the center.
3. Remove ITG Bearing Cap Upper.
