1.2L REVOTRON ENGINE

115

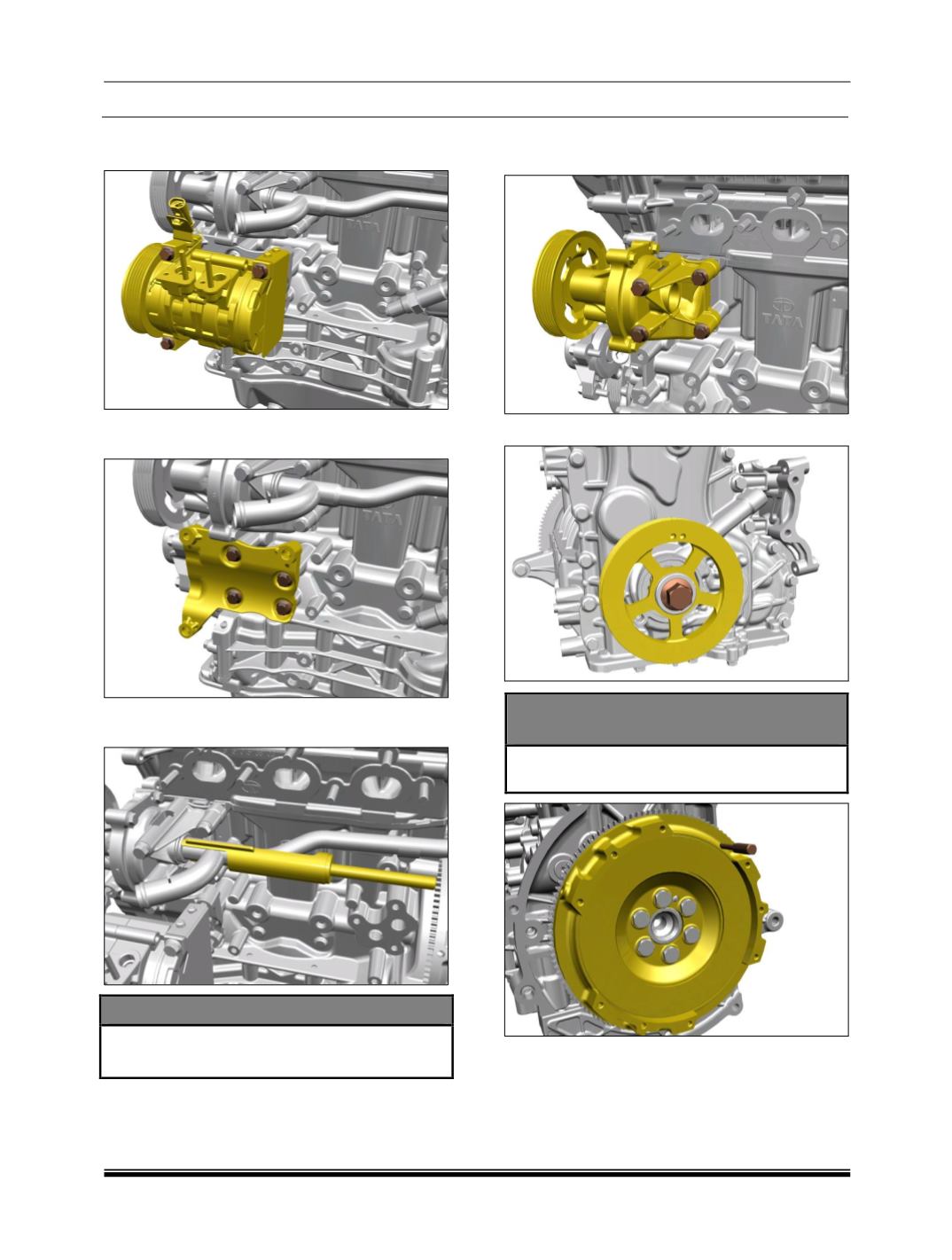

12. Remove the Compressor by removing the

three fasteners.

13. Remove the Compressor mounting bracket by

removing the four fasteners.

14. Remove the water bypass tube by removing 2

bolts and pulling out by special tool.

SPECIAL TOOL



Tool-Water pipe installation

–

5424 5890 20 02

15. Remove the water pump by removing the four

fasteners.

16. Remove crankshaft Pulley.

NOTE

Ensure the flywheel in lock position during

crankshaft pulley removal as given below.
