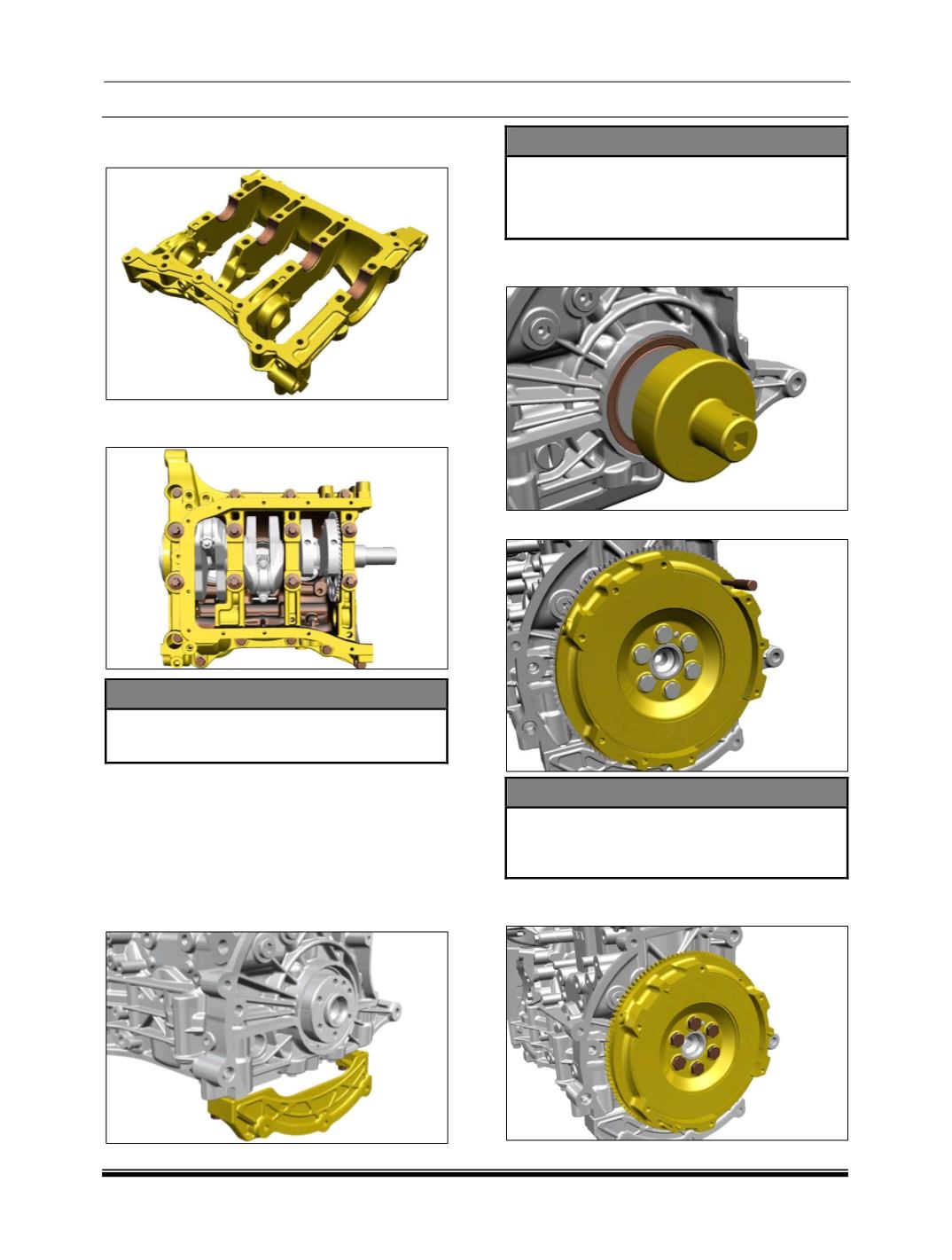

10. Assemble the lower bearing shell to the
bedplate. (Apply the coat of engine oil.)
11. Assemble the bed plate by tightening the
mounting bolts.
NOTE
Ensure the crankshaft is free in rotation.
Ensure the dowel pin.
12. Fix the dial gauge and check crankshaft axial
play. It should be within specified limit (0.1 to
0.3 mm).
13. Check for free rotational torque.
14. Apply the sealant on outer surface of the oil
seal.
15. Assemble stiffener plate by tightening two
fasteners.
NOTE
Mating surfaces of crankcase and rear
cover should be cleaned.
Apply grease on crankshaft rear cover
gasket.
16. Assemble Crankcase Rear Cover with Rear
oil seal.
17. Lock the flywheel.
SPECIAL TOOL
Flywheel locking Tool in Standalone
condition -
2702 5890 06 04
18. Assemble flywheel by tightening mounting
bolts.
