1.2L REVOTRON ENGINE
114

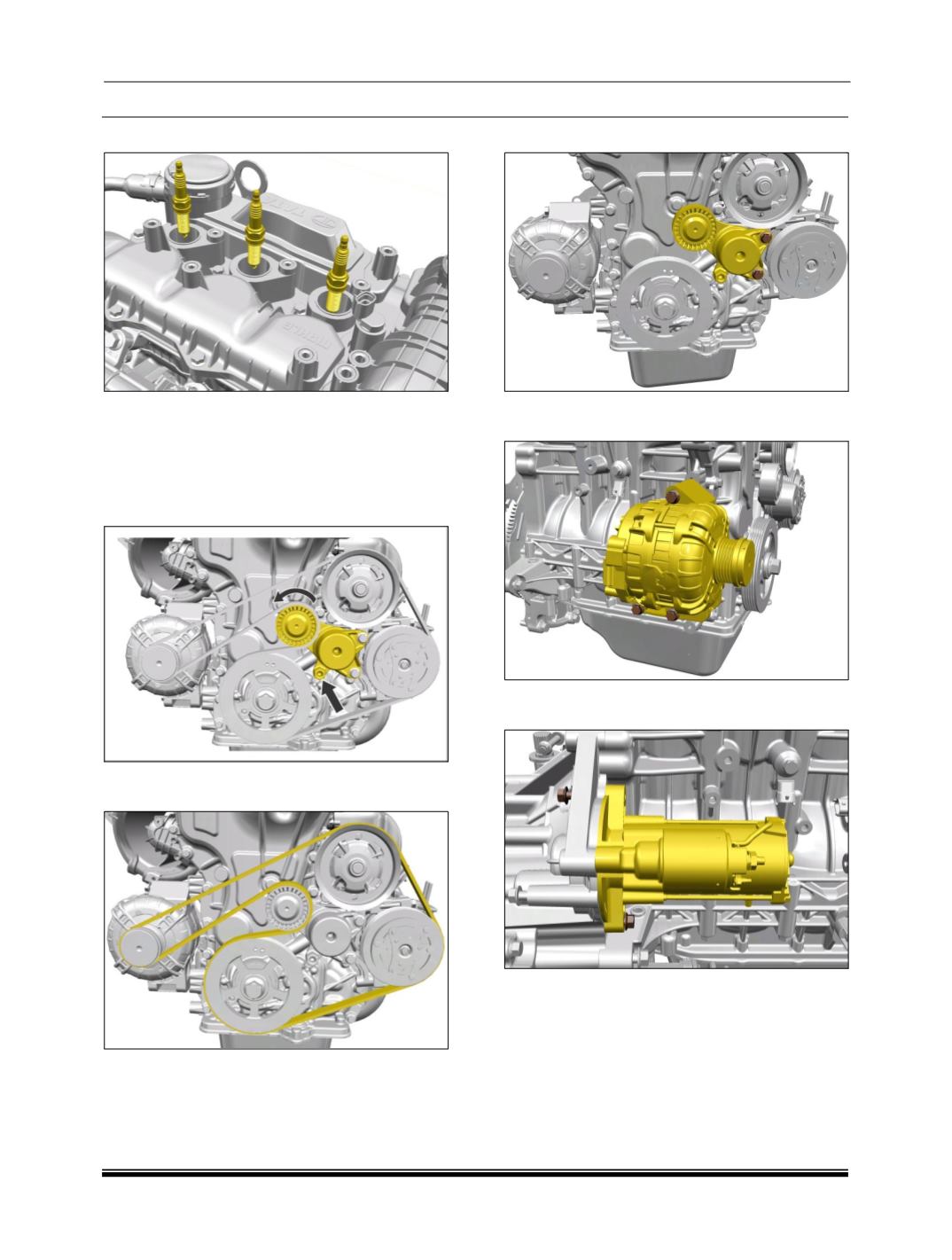

5. Remove Spark plugs.
6. Remove the Cylinder Head Cover from the
engine & carefully placed the rubber gasket
apart.
7. Rotate the tensioner point by using ring
spanner opposite to belt tension to remove
the belt
8. Remove alternator, compressor, and water
pump driving common Belt.
9. Remove Belt tensioner.
10. Remove the Alternator by removing the three
fasteners.
11. Remove the Starter Motor by removing the
three fasteners.
