ENGINE 1.3L QUADRAJET (90PS)
53

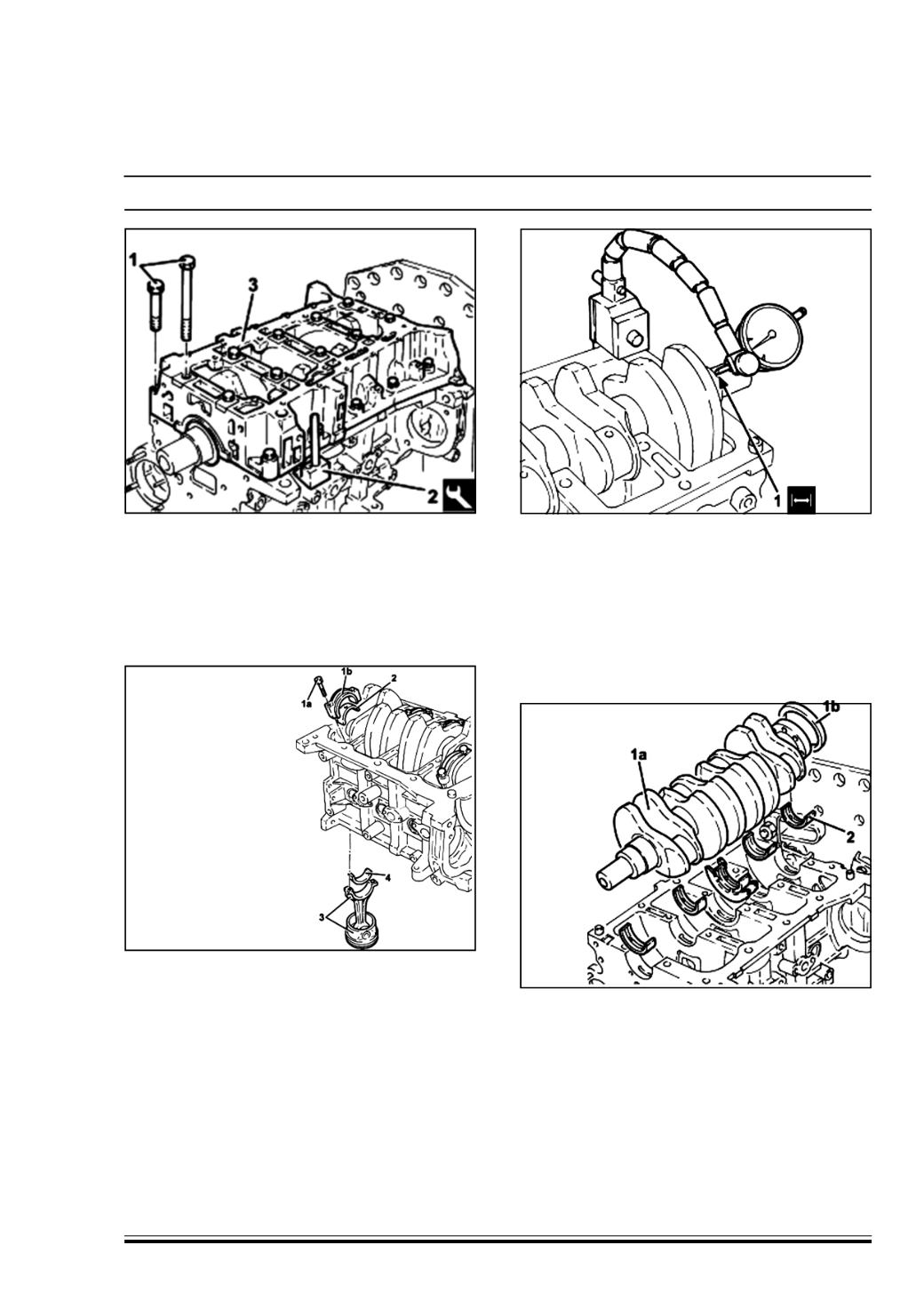

19.Remove the bolts (1a) and remove the connecting
rod caps (1b).
20.Remove the lower crankpin half-bearings.
21.Remove the connecting rod - piston assemblies.
22.Remove the upper connecting rod half-bearings (4).
24.Remove the crankshaft (1a) complete with rear oil
seal (1b).
25.Remove the upper main journal half-bearings.
NOTE
The central main bearing half is joined to the
thrust half-rings. Press the ends of the half-
bearing to separate.
23.Check that the crankshaft end float corresponds
to the recommended figures of 0.055 ~ 0.265
using a magnetic base and dial gauge (1).
NOTE :
If the value for the crankshaft end float does not
correspond with the recommended figures, use
suitable oversize thrust washers.
