ENGINE 1.3L QUADRAJET (90PS)
51
3A.1.2.3 ENGINE BLOCK
3A.1.2.3.1 DISMANTLING

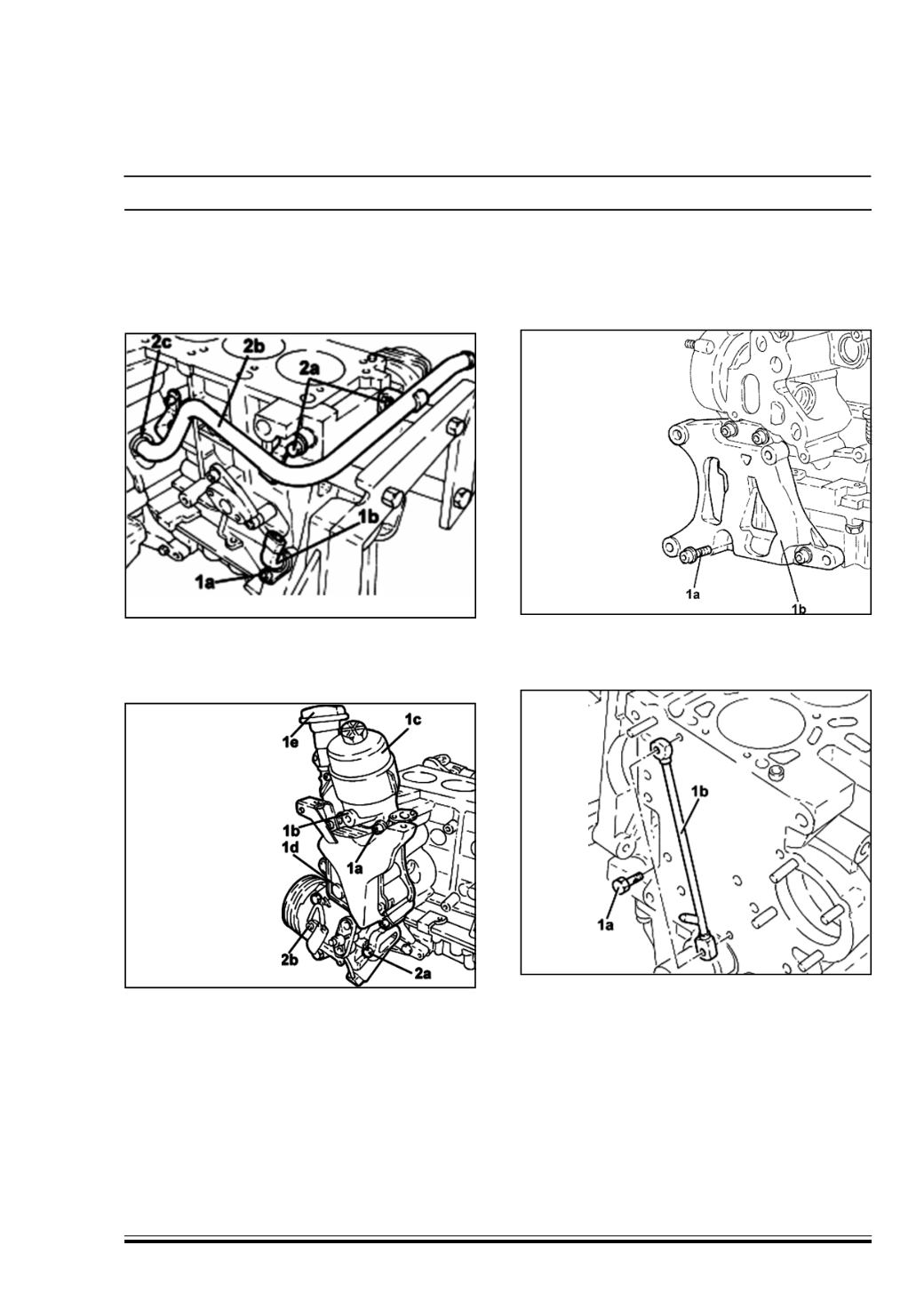

1. Remove the bolt (1a) and remove the rpm sensor
(1b).
3. Remove the bolts and remove the engine oil heat
exchanger protection.
4. Remove the bolts (1a) and remove the engine oil
filter mounting (1b) complete with engine oil filter
(1c), engine oil heat exchanger (1d) and engine oil
filler fitting (1e).
5. Remove the gasket.
6. Remove the bolts (2a) and remove the air
conditioner compressor (2b).
7. Remove the bolts (1a) and remove the air
conditioner compressor mounting (1b).
8. Remove the connectors (1a) and remove the engine
oil pipe (1b).
2. Remove the bolts (2a) and remove the rigid coolant
inlet pipe to the water pump (2b) complete with O-
Ring (2c).
