ENGINE 1.3L QUADRAJET (90PS)
52

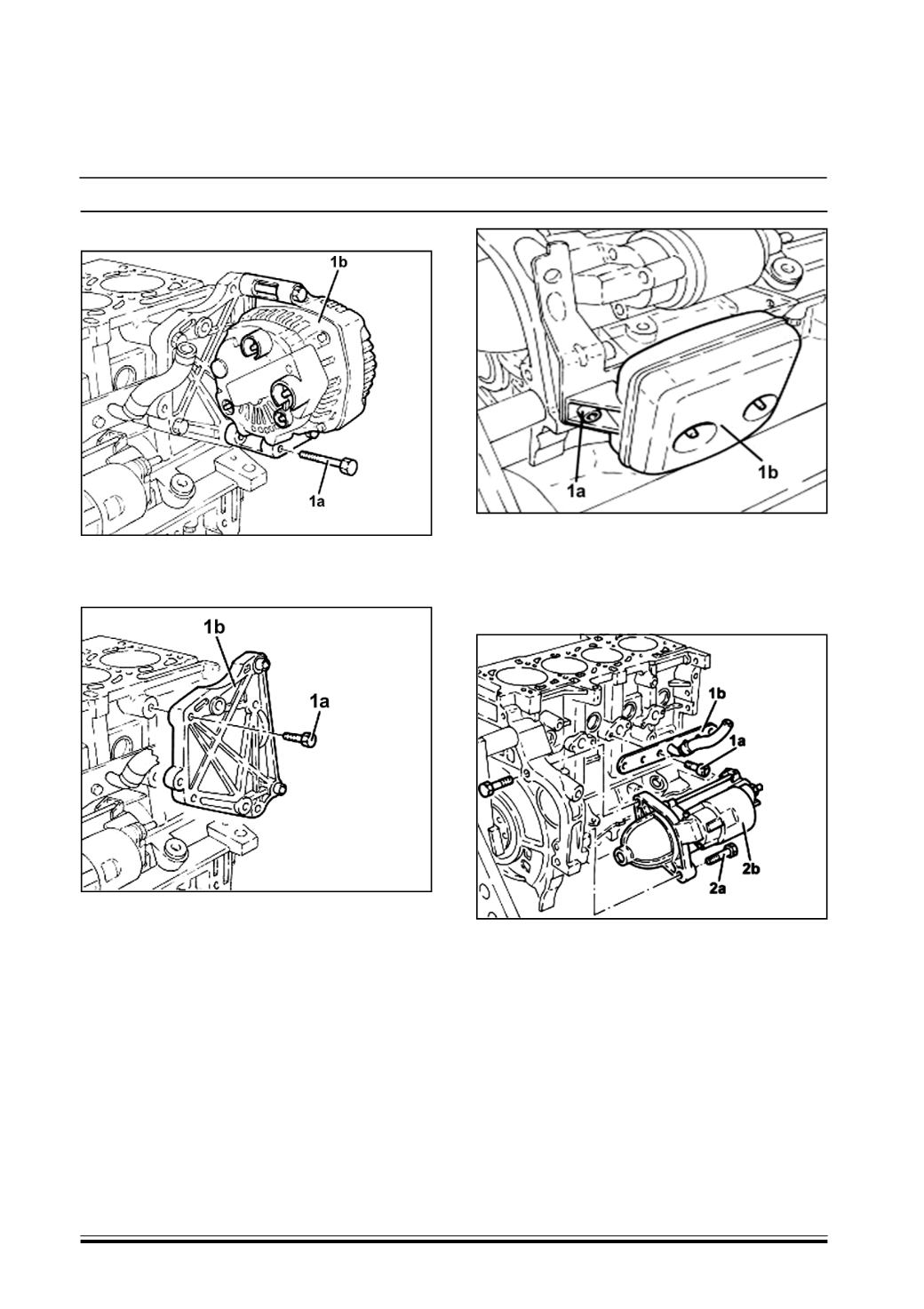

9. Remove thebolts (1a) and remove thealternator (1b).
10.Remove the bolts (1a) and remove the alternator
mounting (1b).
11. Remove the bolts (1a) and remove the vacuum
reservoir (1b).
12.Remove the bolts (1a) and remove the engine oil
recovery manifold (1b).
13.Remove the bolts (2a) and remove the starter
motor (2b).
14.Rotate the engine through 180° on the overhaul
stand.
15.Remove the lower crankcase retaining bolts.
16.Cut the lower crankcase sealant using
the tool
287158900663 (Blade).
17.Remove the lower crankcase.
18.Remove the lower main journal half-bearings
