ELECTRICAL
71

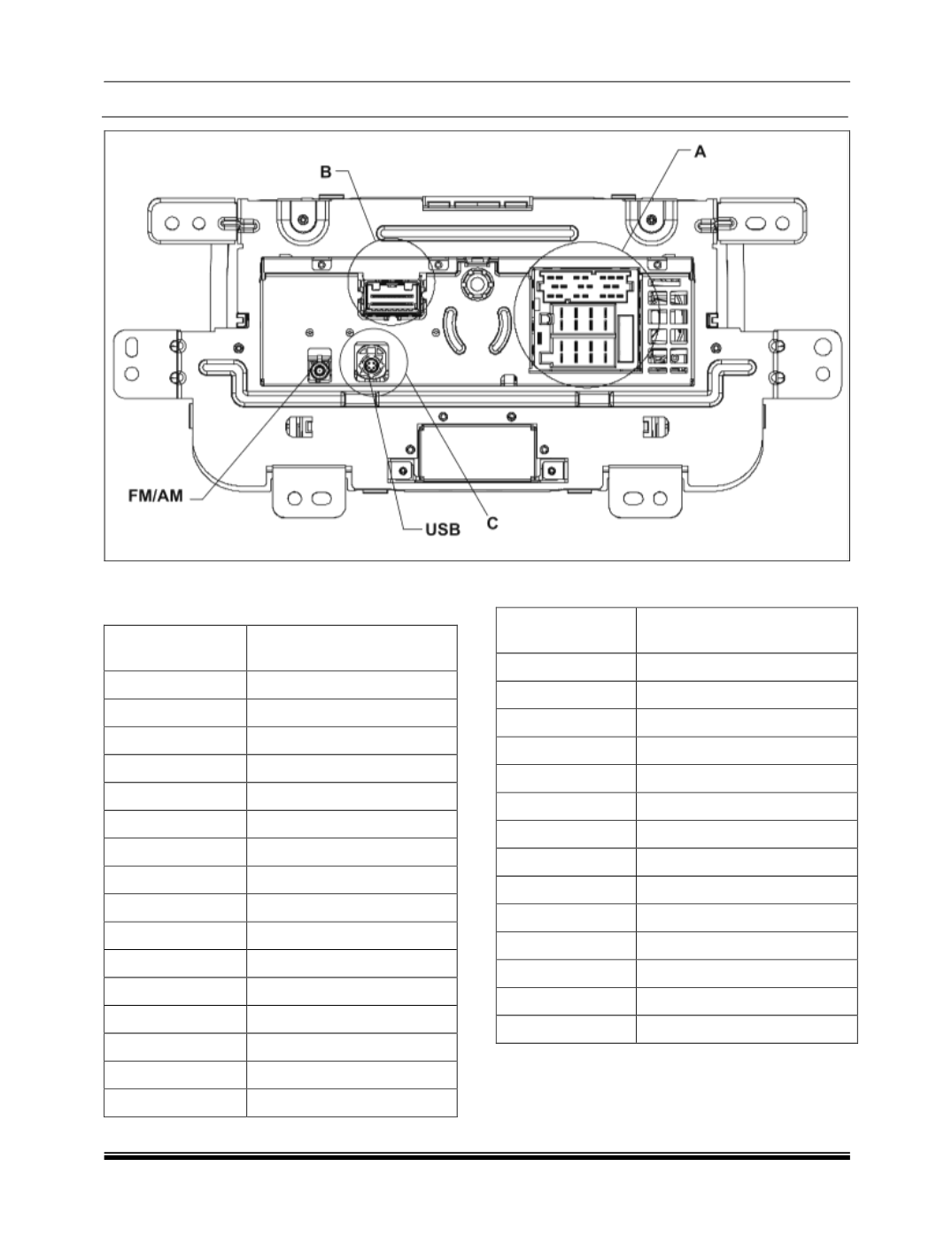

PIN DETAILS OF A
POSITION
DETAIL
DESCRIPTION
A1
Anti theft enable
A2
NC
A3
Hard wake up2
A4
Hard wake up1
A5
Ignition
A6
Key In
A7
Battery
A8
GND
B1
Speaker rear RH+
B2
Speaker rear RH+
B3
Speaker front RH+
B4
Speaker front RH+
B5
Speaker front LH+
B6
Speaker front LH+
B7
Speaker rear LH+
B8
Speaker rear LH+
POSITION
DETAIL
DESCRIPTION
C1
Mic-
C2
CAN1_H
C3
NC
C4
Mic+
C5
CAN1_L
C6
NC
C7
SWcSignal
C8
ExtCo Mech Audio In Shield_L
C9
ExtCo Mech Audio In Shield
C10
SWcGND
C11
ExtCo Mech Audio In_R
C12
ExtCo Mech Audio InCom
C13
USB1_5V
C14
Dock_G
