ELECTRICAL
80
For pin details refer below table
PIN
NO
DESCRIPTION
2
A
+ve supply
2
B
Pin 3 of LH mirror
1
A
Pin 1 of RH mirror
1
B
Pin1 of LH mirror
3
A
Pin 3 of RH mirror
3B/4B
Earth

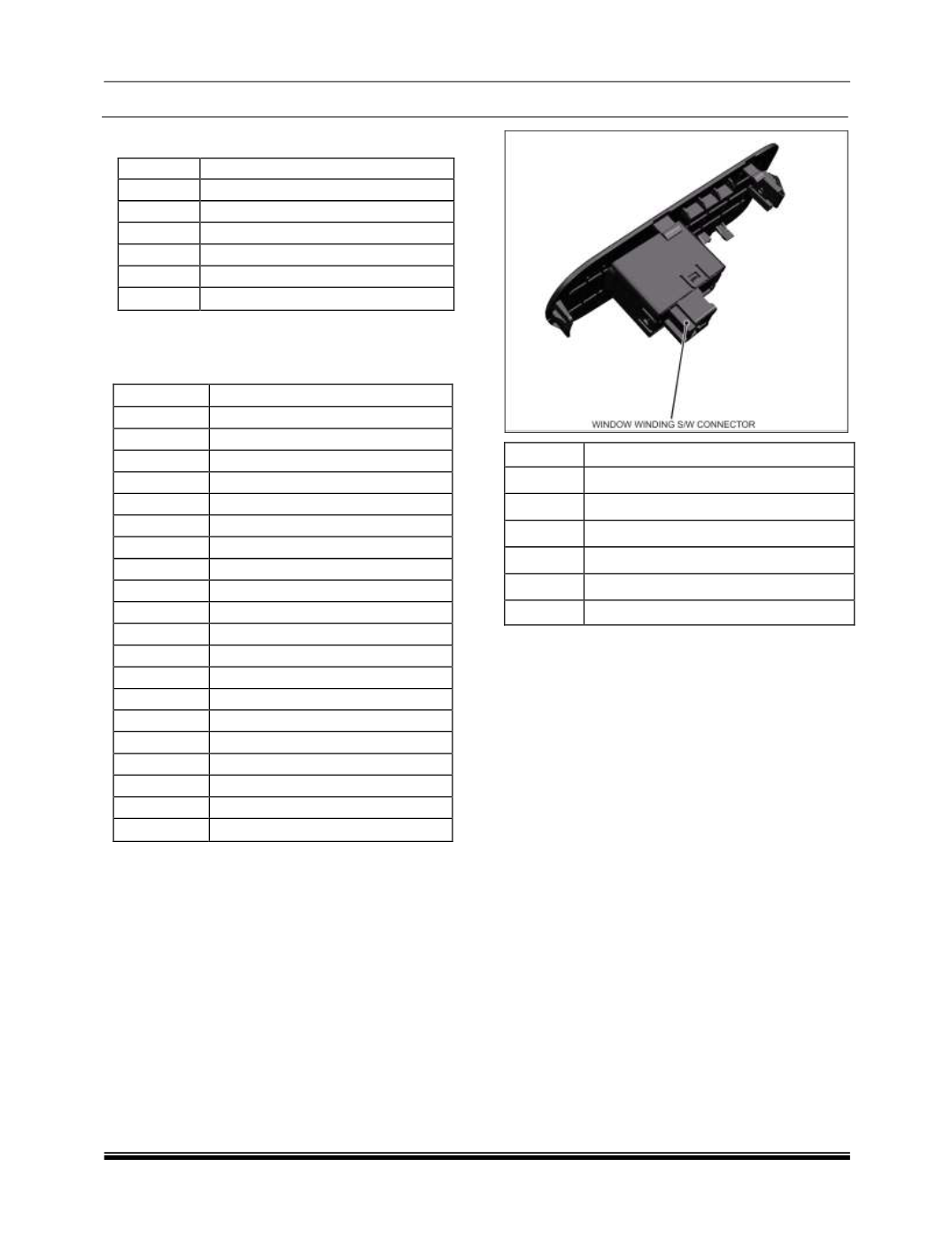

Driver Door Window winding S/w is 20
pin connector. For pin out details refer below
Table.
PIN NO
DESCRIPTION
1
Inhibit switch
2
NC
3
NC
4
Rear RH (UP)
5
Rear RH(DOWN)
6
Earth
7
Rear LH(DOWN)
8
NC
9
Rear LH(UP)
10
+ve for inhibit indicator
11
NC
12
Front LH (DOWN)
13
Front LH(UP)
14
NC
15
Earth
16
-ve LED illumination
17
+ve LED illumination
18
Front RH(UP)
19
Front RH(DOWN)
20
NC
Co-driver, Rear RH & rear LH s/w is 6 pin
connector. For pin out details refer below
table.
PIN NO
DESCRIPTION
1
Earth
2
Down
3
UP
4
+ve supply for illumination
5
-ve supply for illumination
6
NC
