ZEST AND BOLT - page 1030

ELECTRICAL
63

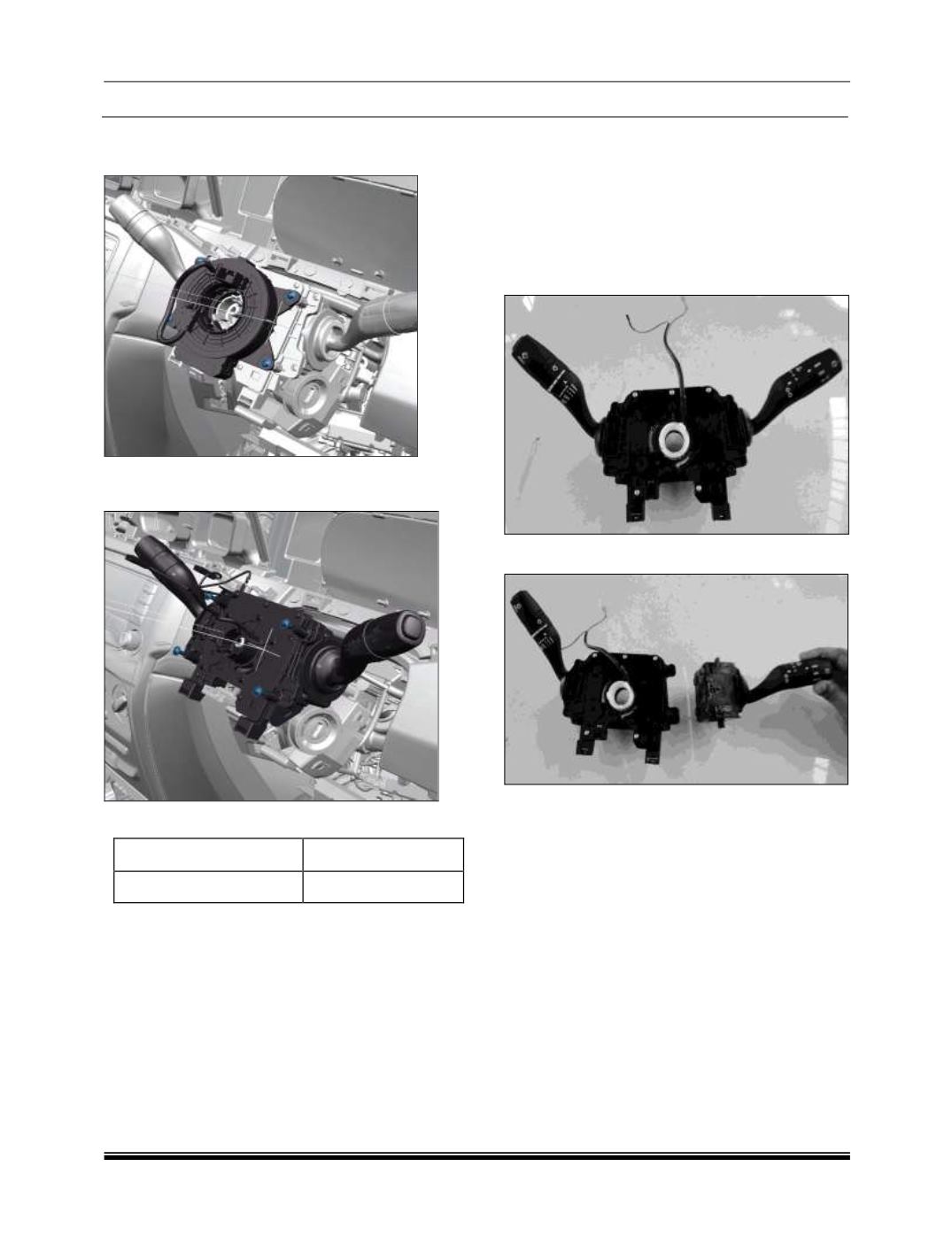

5. Remove combi switch Clock spring screws and
take out it.
6. Remove combi switch block from steering
column.
TORQUE VALUE TABLE
APPLICATION
TORQUE VALUE
Combi-switch Screw
0.7/0.1Kgfm
REFITMENT
1. Refit combination switch block properly
on steering column.
2. Refit combination switch block mtg. Clip.
3. Reconnect combination switch connection.
4. Refit steering wheel.
5. Refit Steering nacelle.
6. Refit Battery negative terminal.
COMBI STALK REPLACEMENT
PROCEDURE
1. Remove the combi switch from vehicle. Refer
removal & refitment of steering nacelle from
steering section.
2. Disconnect combi switch connection.
3. Remove the two mounting screw of the stalk.
4. Remove the stalk.
INSTALLATION:
1. Fit the new stalk.
2. Tight the mounting screws of stalk.
3. Fit the combi switch.
