ELECTRICAL
62

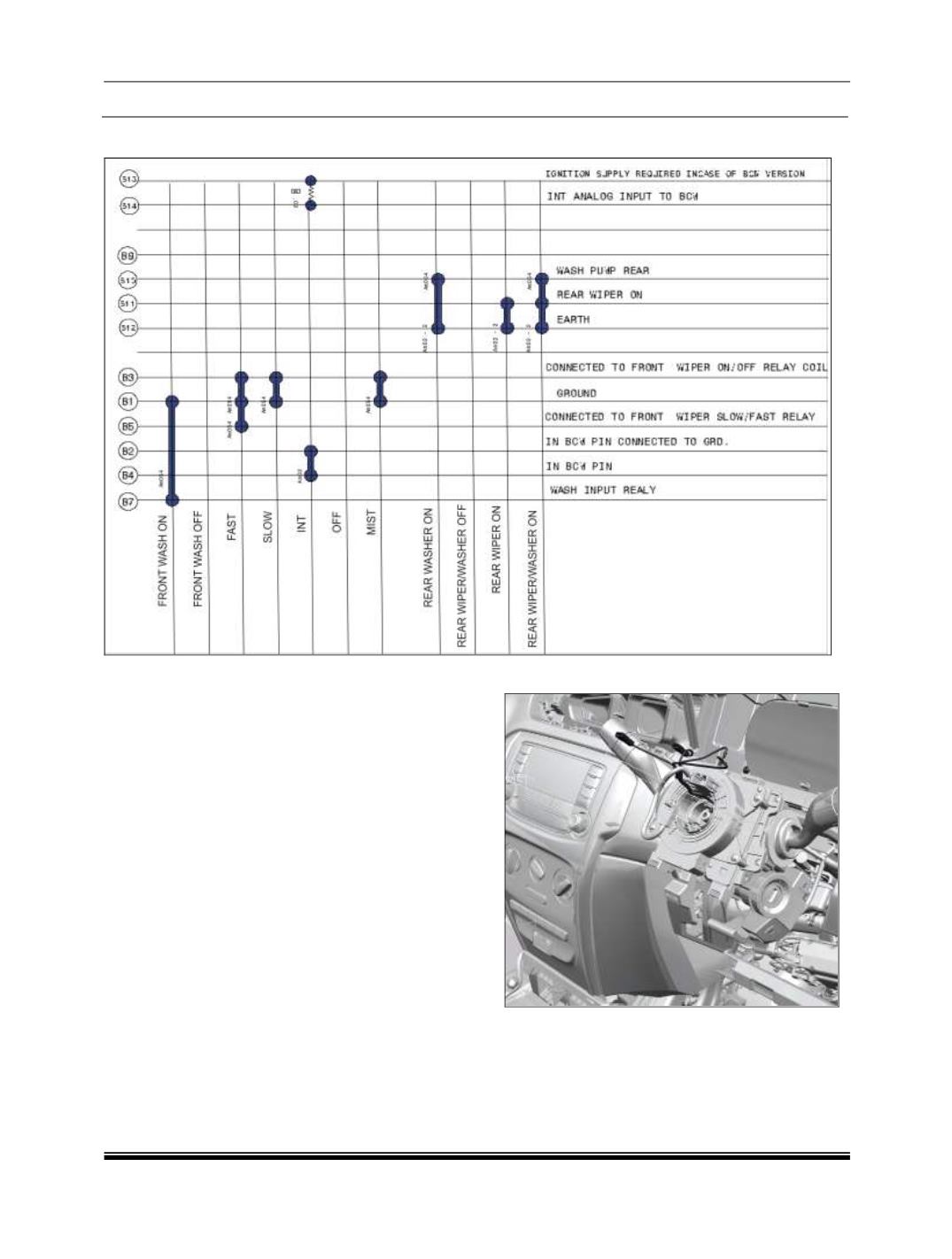

WIPER CIRCUIT DIAGRAM
REMOVAL & REFITMENT OF COMBI SWITCH
REMOVAL:
1.
Disconnect battery negative terminal.
2.
Remove steering nacelle. Refer “Removal &
Refitment of steering nacelle" from Steering
Section.
3. Remove steering wheel. Refer “Removal &
refitment of steering wheel" from Steering
Section.
4. Disconnect combi switch connection.
