12.21 POWER WINDOW SWITCHES
Window winding switches are used to move the window glasses Up& Down.
Driver door window winding switch includes all door power window switches, mirror switch & inhibit switch
(child safety).
Inhibit Switch - Red indication on inhibit switch indicates that operation of glass from individual power
window switch (mounted on respective door trim) is allowed (valid for co- river and both rear doors)
No indication on inhibit switch indicates that operation of glass from individual switch (mounted on respective door
trims) is inhibited.
Mirror Switch Operation: This switch is used to adjust the desired position of outer rear view mirror LH & RH.
1. Move the main switch to the left “
dot
” to adjust the left side rear view mirror and to the right “
dot
” to adjust
the right side rear viewmirror.
2. For horizontal adjustment, press the knob to left -right & for vertical adjustment press the knob to up - down.

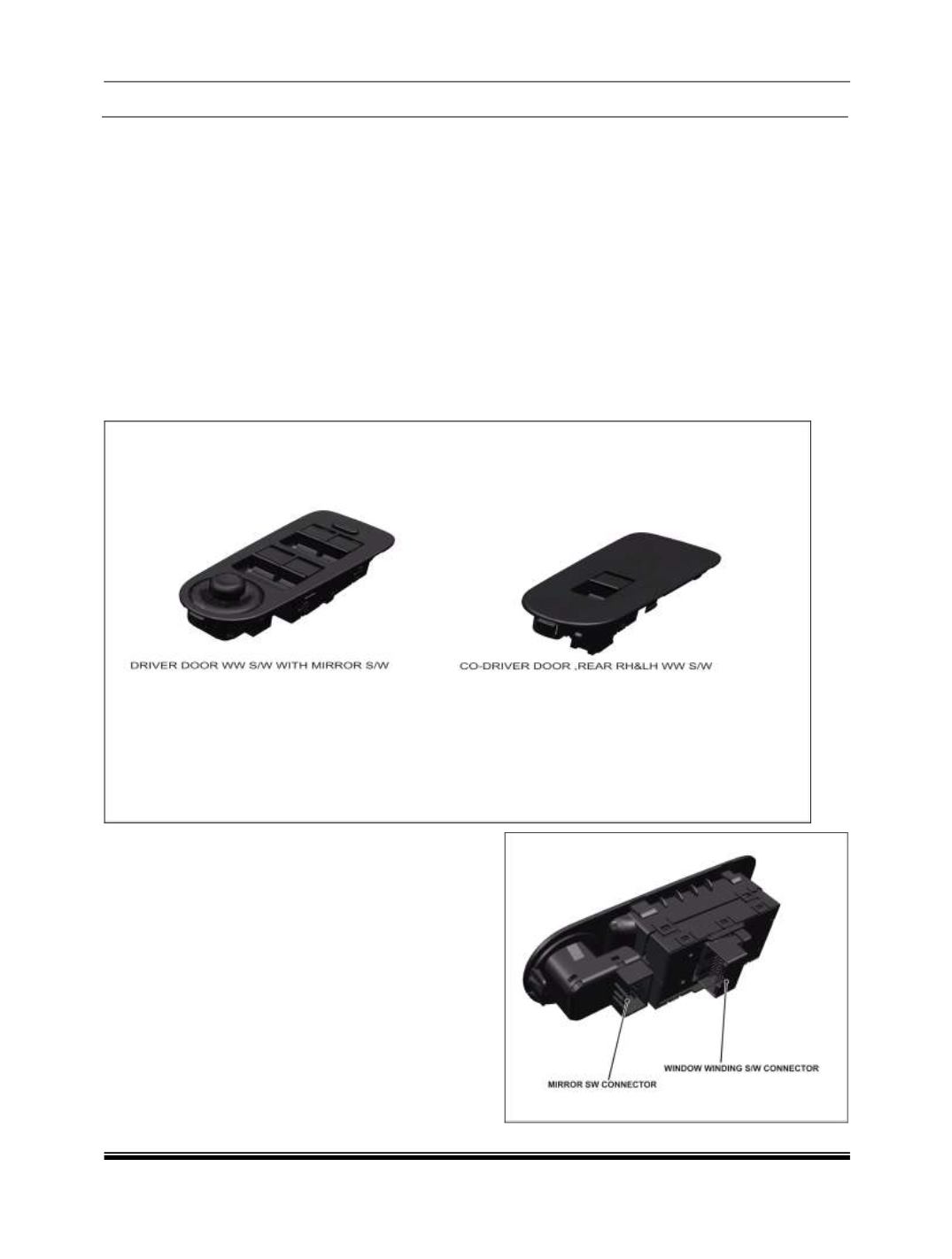

LOCATION:
Located on all door trims
CONNECTORDETAILS:
Driver door mirror s/w connector is 6 pin connector.
