BODY
25
5.
Slide the gripper handle at back.
6.
Remove the gripper handle.
7.
Disconnect the links of outer door handle and
lock barrel and remove the outer door handle
bracket from the door shell.
FITMENT
For fitment follow reverse procedure of removal.

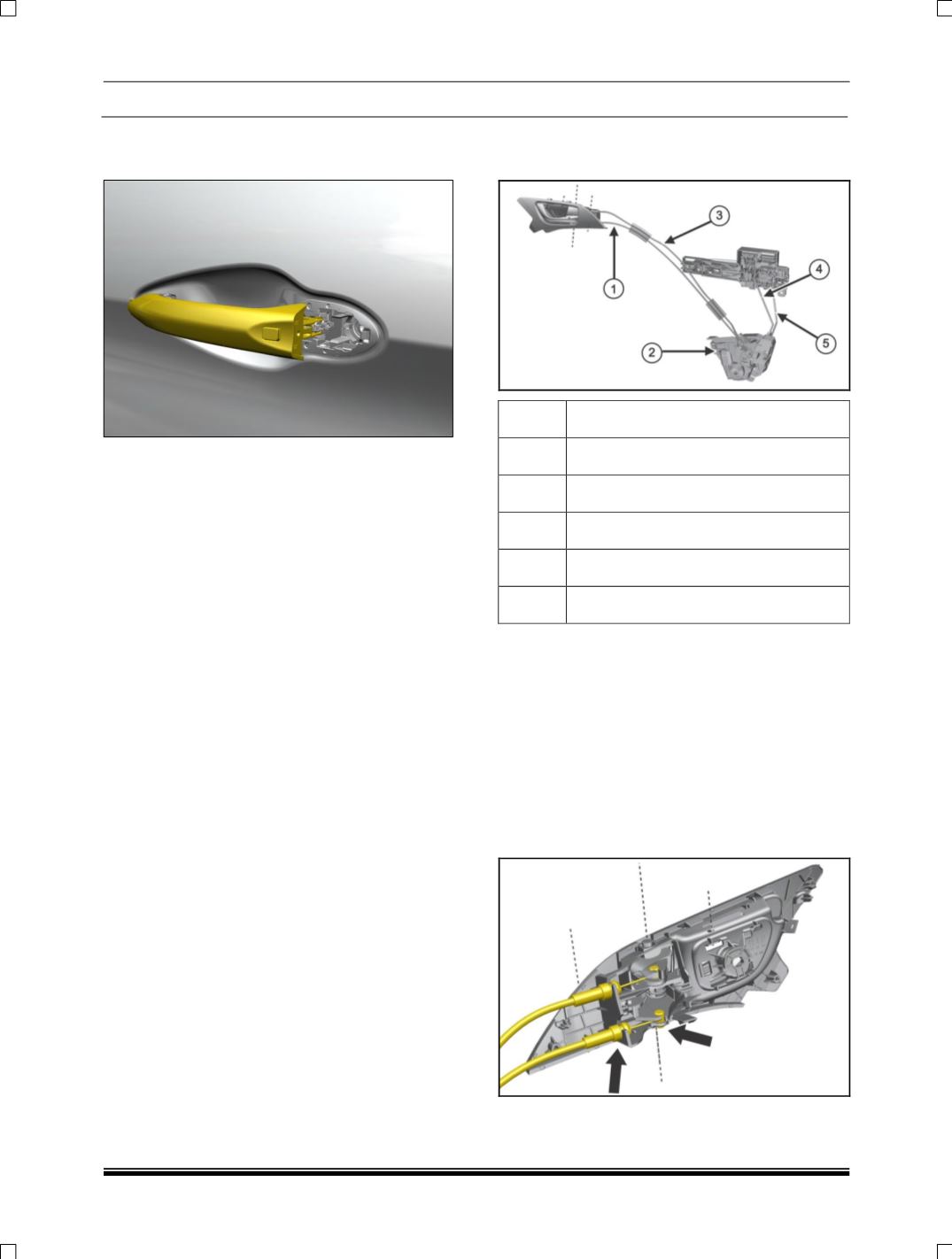

4.12. FRONT DOOR LATCH
REMOVAL
SR. NO DESCRIPTION
1
Cable between inner handle to latch
2
Latch
3
Cable between pop up knob to latch
4
Link between outer handle to latch
5
Link between lock barrel to latch
1. Remove the door trim.
(For procedure refer
door trim removal process.)
2. Disconnect electrical connector at the latch end.
3. Push the pop knob downwards so as to in lock
position to have better access to remove the
links.
4. Remove door inner lock handle. (For procedure
refer door inner lock handle removal process.)
5. Disconnect the inner handle cable from the
door inner lock handle.
