1.5L REVOTORQ ENGINE

113

G. TURBOCHARGER

REMOVAL

AND

REFITMENT

REMOVAL

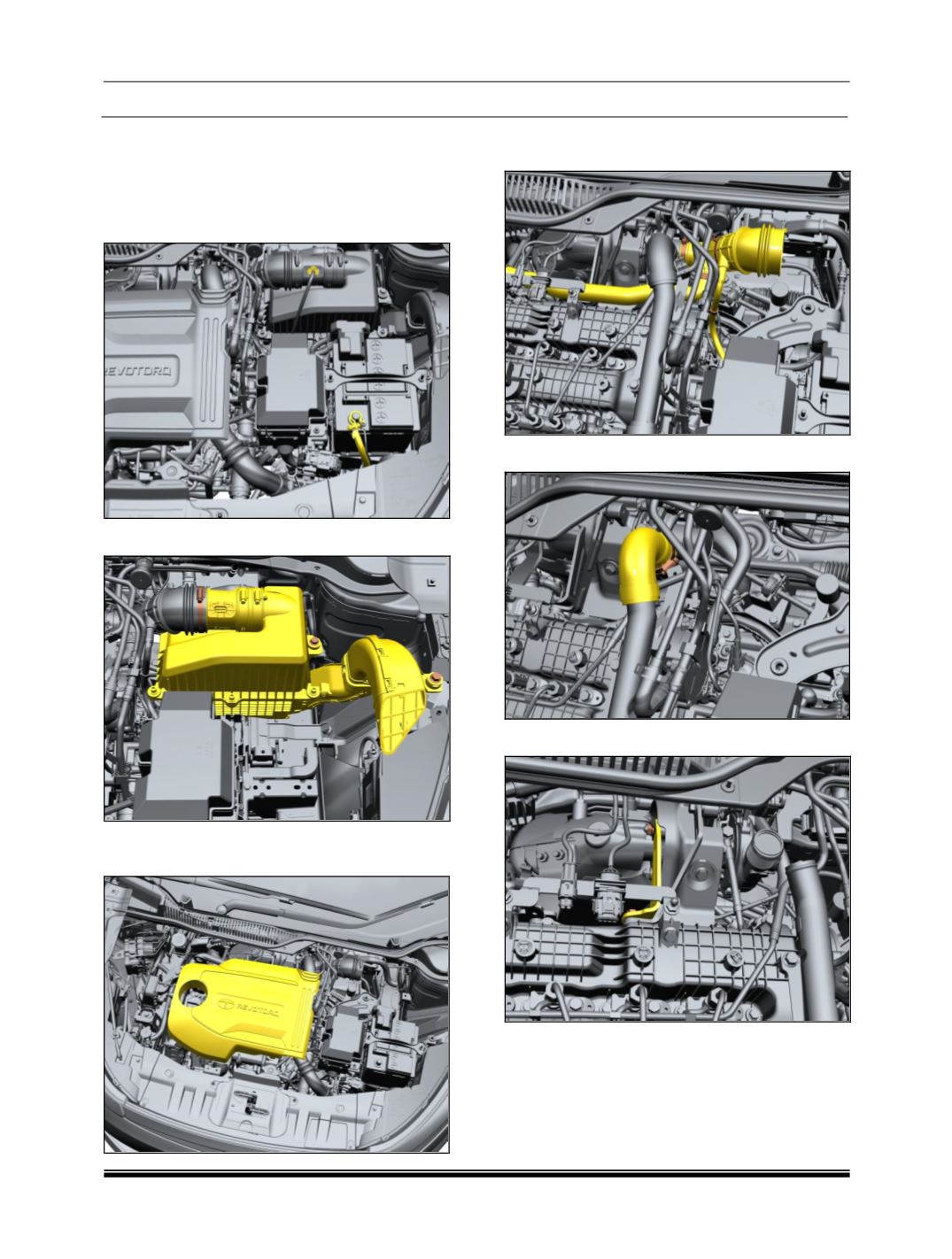

1. Disconnect electrical connection to negative

terminal and t-map sensor.

2. Remove air filter and t-map sensor.

3. Remove the clamps and disconnect the air

filter hoses.

4. Disconnect hoses to turbocharger intake hose

and remove TC intake hose.

5. Disconnect turbocharger outlet hose.

6. Remove the catcon support bracket.
