1.5L REVOTORQ ENGINE
103

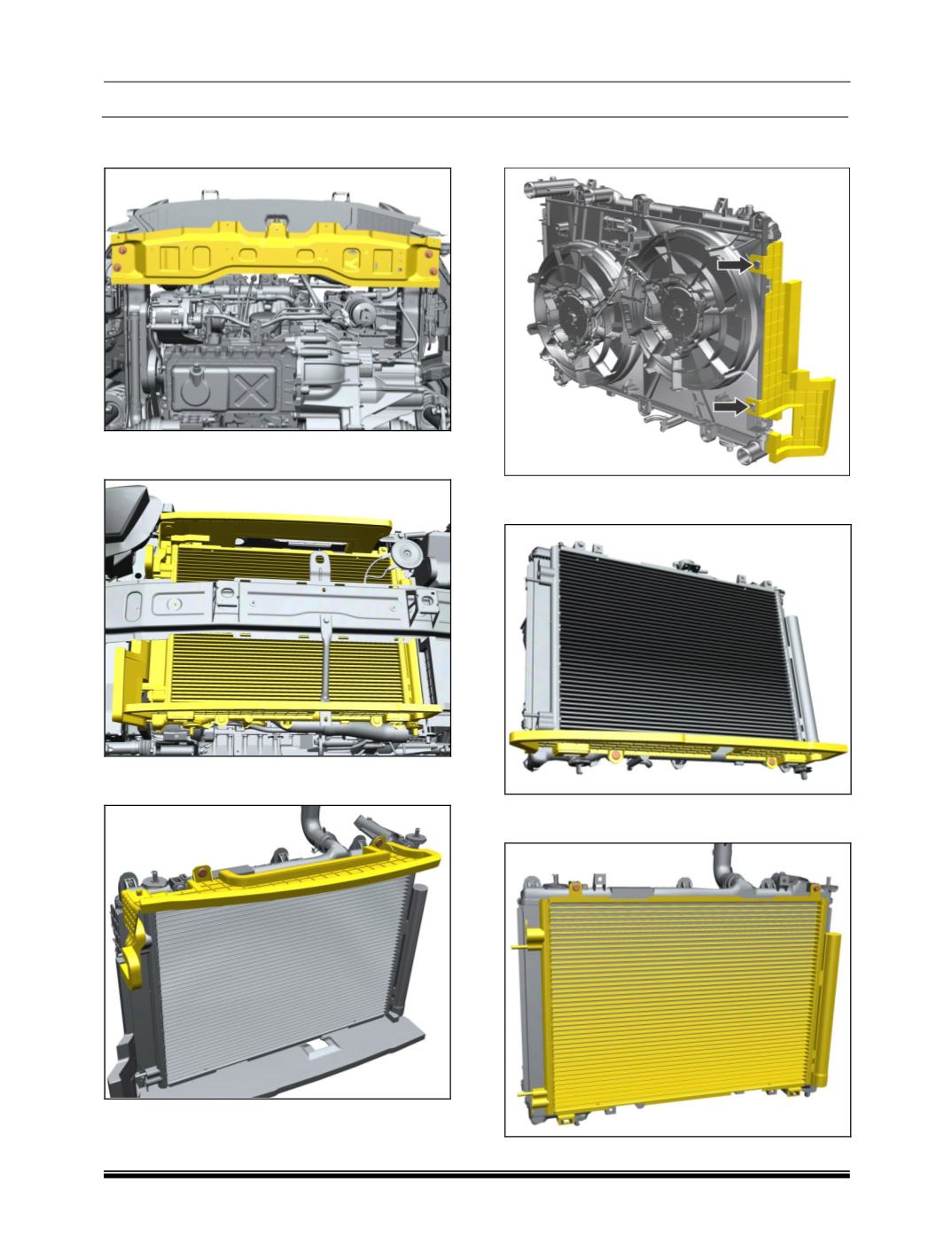

11.Remove the mounting bolts of the bottom
member of radiator support.
12.Tilt inwards and slide out the radiator and
condenser assembly from the vehicle.
13.Remove the mounting rivets and take out the
top sealing assembly.
14.Remove the mounting rivets and take out the
side sealing assembly.
15.Remove the mounting rivets and take out the
bottom sealing assembly.
16.Remove the top mounting bolts and remove
condenser assembly.
