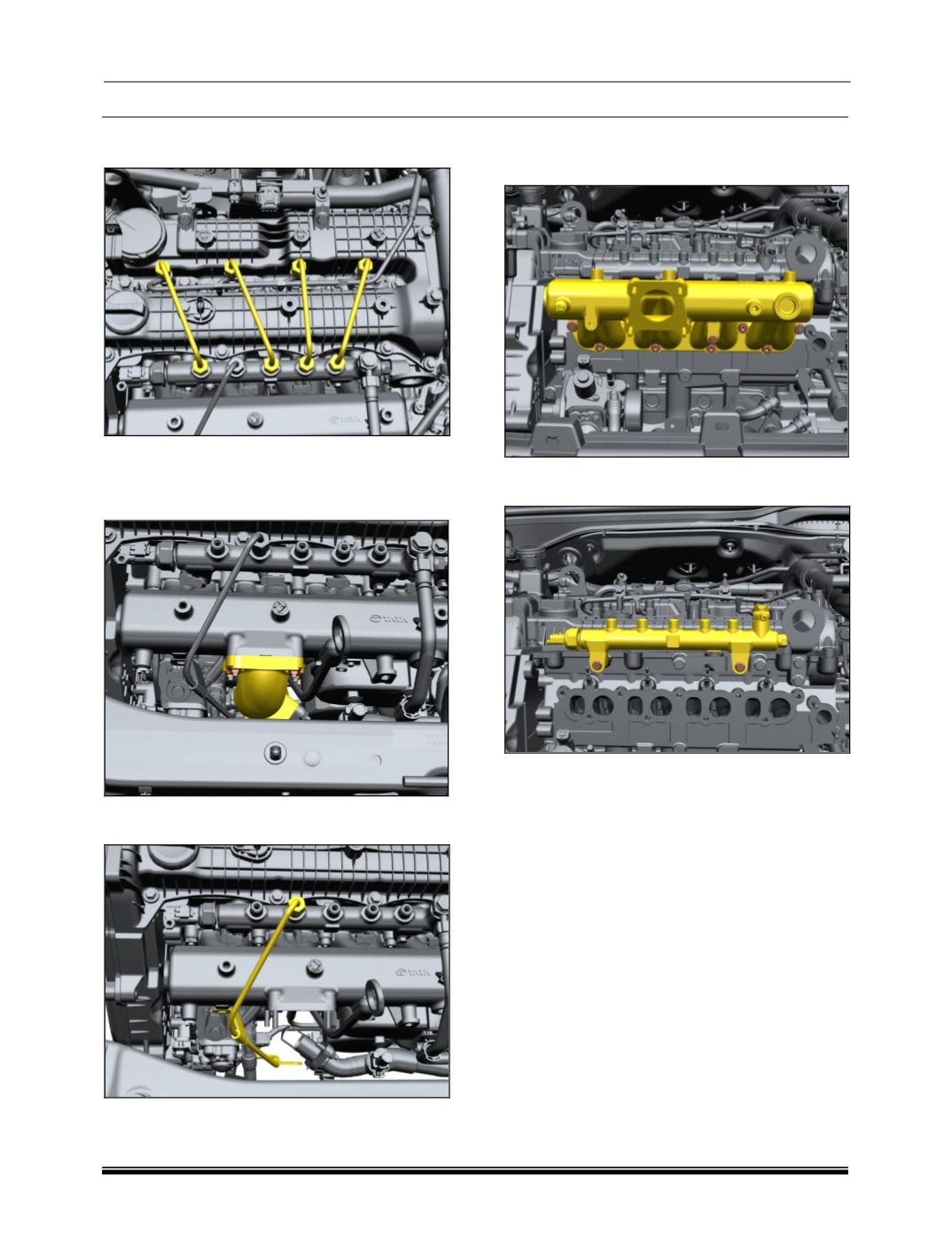

8. Loosen and remove the H.P. fuel lines
connecting fuel rail and the fuel injectors.
9. Loosen and remove the mounting fasteners of
the air intake elbow connected to the air
intake manifold. Disconnect the air intake
elbow.
10. Disconnect the fuel pressure line of the fuel
rail.
11. Remove the mounting fasteners of the intake
manifold. Take out the intake manifold
assembly.
12. Loosen and remove the mounting bolts and
take out the fuel rail assembly.
FITMENT
For fitment follow reverse procedure for removal.
