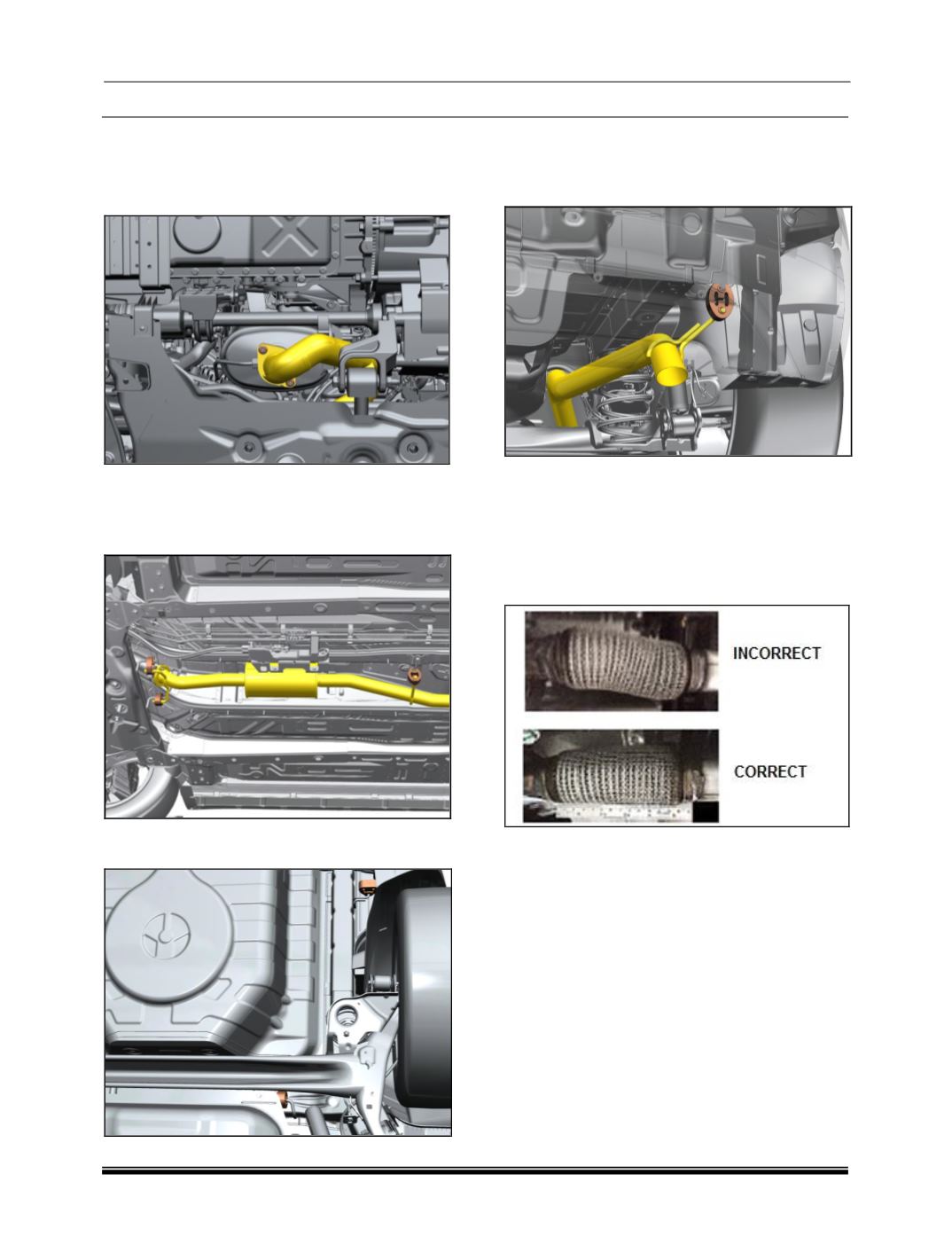

C. EXHAUST PIPE FITMENT PROCEDURE
1. Match hot end flange & exhaust front pipe
flange holes with gasket in between. Install
along with mounting bracket
2. Tight the front pipe mounting bracket & apply
tightening torque-2.3 kgf.m.
3. Install silencer and all supporting rubber
hangers.
4. Install rubber hangers of main silencer on
underbody.
5. Insert exhaust rear assembly into rubber
hangers. (Ensure proper orientation of rear
assy. rubber hangers).
6. Tight the pipe in pipe joint clamp nut by
pneumatic tool & apply tightening torque 3.5
kgf.m.
NOTE
Ensure flex bellow should not be pre stress or
bend as shown in below figure & also ensure
proper orientation of rubber hangers
