E. COOLING SYSTEM
ON VEHICLE REPAIRS
A. INTERCOOLER
REMOVAL

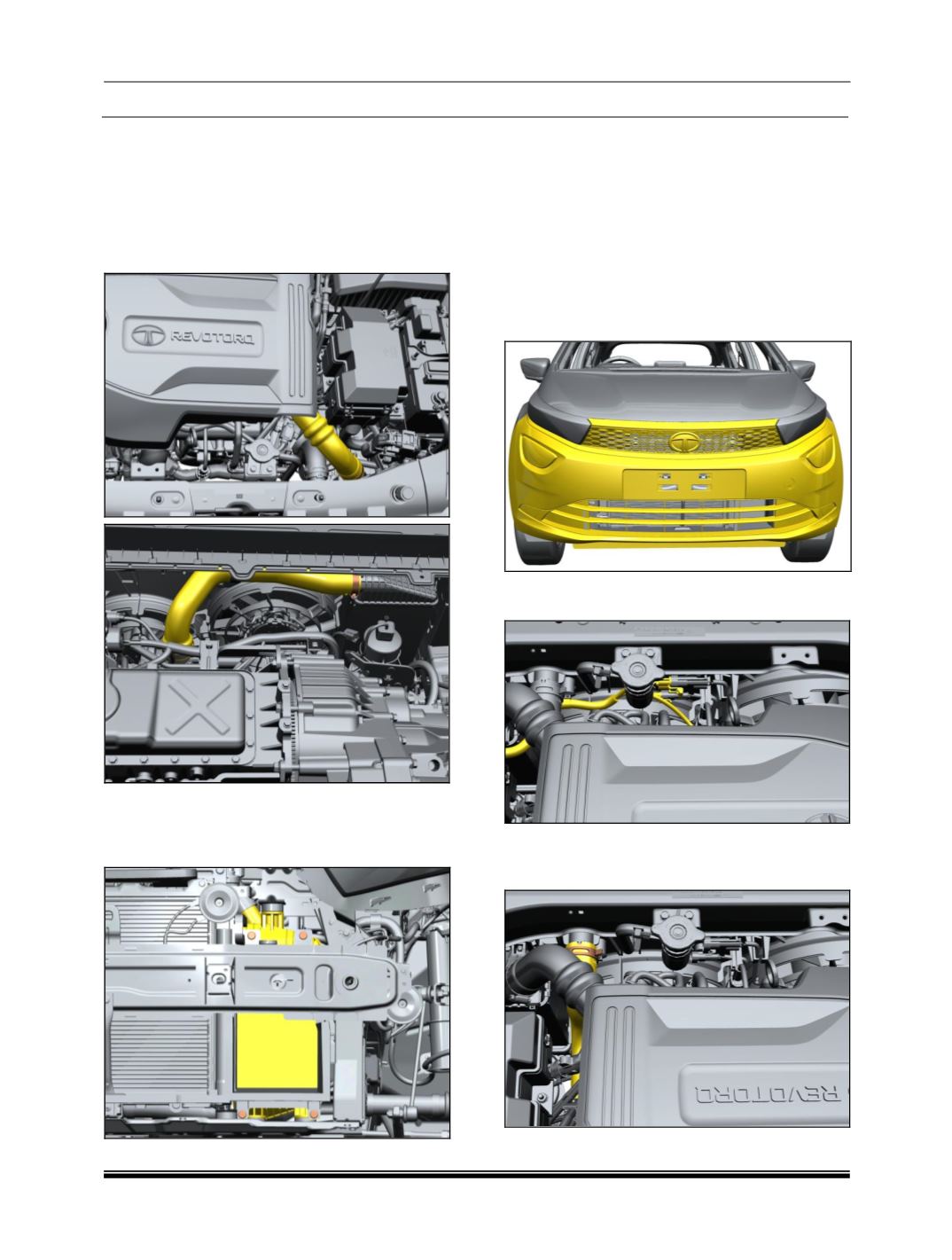

1. Loosen spring clamp and disconnect the
intercooler inlet and outlet hoses.
2. Remove the front bumper.
(Refer Body
section for front bumper removal procedure).
3. Remove the mounting rivets and take out the
intercooler assembly from rubber grommets.
FITMENT
For fitment follow reverse procedure for removal.
B. RADIATOR
REMOVAL
1. Drain the coolant and remove the coolant tank.
(For procedure refer "Coolant replacement" in
Engine Maintenance section)
2. Recover refrigerant from refrigerant lines.
(For
procedure refer HVAC section)
3. Remove the front bumper. (
Refer Body section
for front bumper removal procedure).
4. Disconnect the electrical connections of the
cooling fan shroud.
5. Remove the spring clamp and disconnect the
hose connecting between thermostat and
radiator.
