1.5L REVOTORQ ENGINE
98
15. To connect the exhaust front pipe tighten the
flange near Catcon and connect at rear end.
16. Install the air filter assembly and intake
system hoses to the engine.
17. Connect the vacuum hose connected
between brake booster to vacuum pump.
18. Connect all the hoses connected between
radiator and engine.
19. Connect the fuel lines to the engine.
20. Install the Battery Plate, Battery and ECU.
21. Connect the engine wiring harness
connection with ECU.
22. Add the appropriate quantity of Engine oil,
Transaxle oil and coolant with respective
systems.
23. Connect the battery positive cable and then
the battery negative cable.
24. Crank the engine several times without
allowing the vehicle to start. This allows the
oil and coolant to flow through engine.
25. Start the engine and verify the oil pressure
light on the instrument cluster goes out. Stop
the engine immediately if the light fails to
extinguish.
26. Allow the engine to run for several minutes,
checking for fluid levels and leakage.
D. EXHAUST SYSTEM
ON VEHICLE REPAIRS

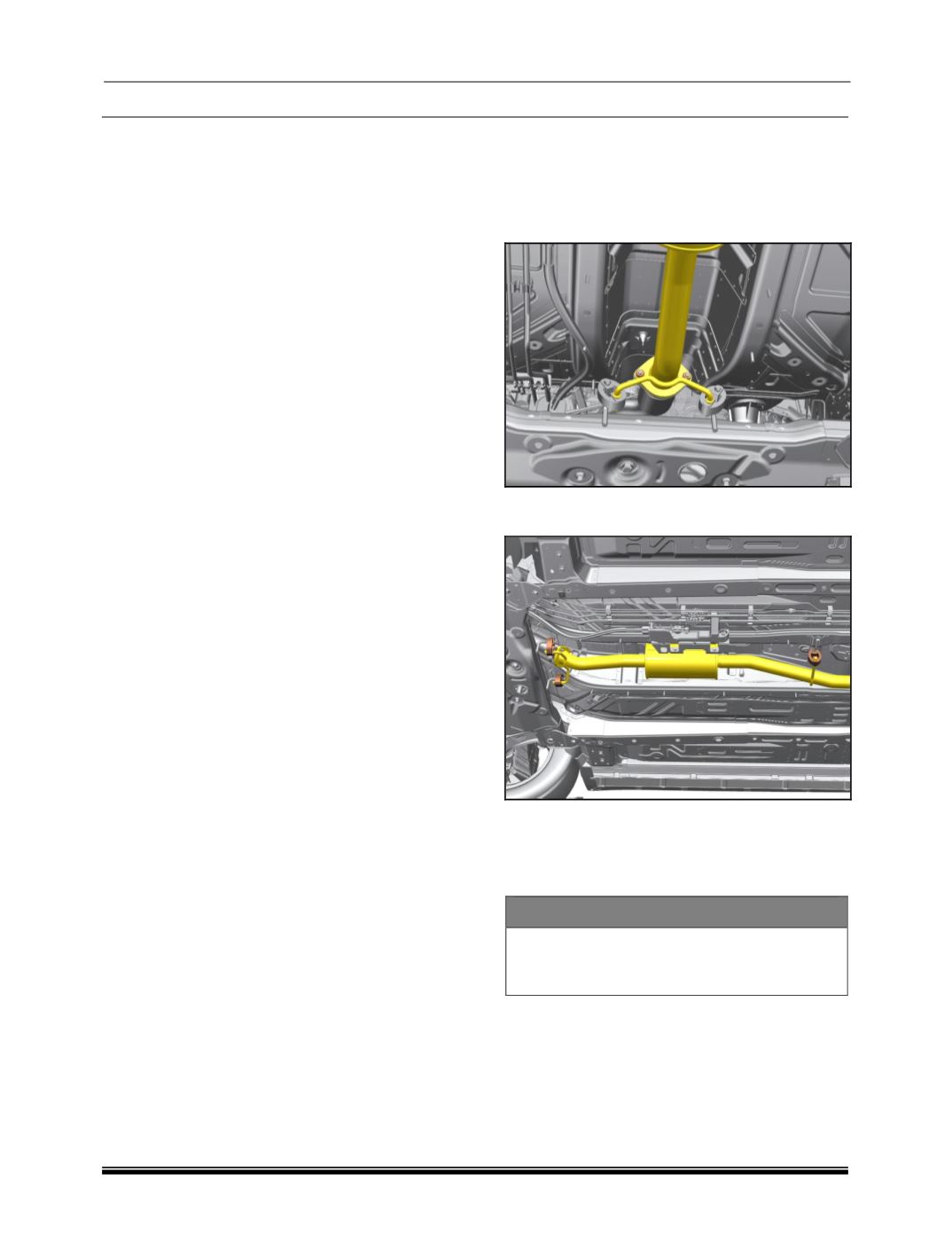

A. EXHAUST ASSY. REAR REMOVAL
1. Remove the mounting bolts of the exhaust
pipe front and its mounting bracket.
1. Remove all supporting rubber hangers on the
silencer.
2. Remove the main silencer assembly.
FITMENT
For fitment follow the reverse procedure of
removal.
NOTE
Use new gaskets every time while fitment
and tighten nuts and bolts to specified
torque.
