1.5L REVOTORQ ENGINE
102

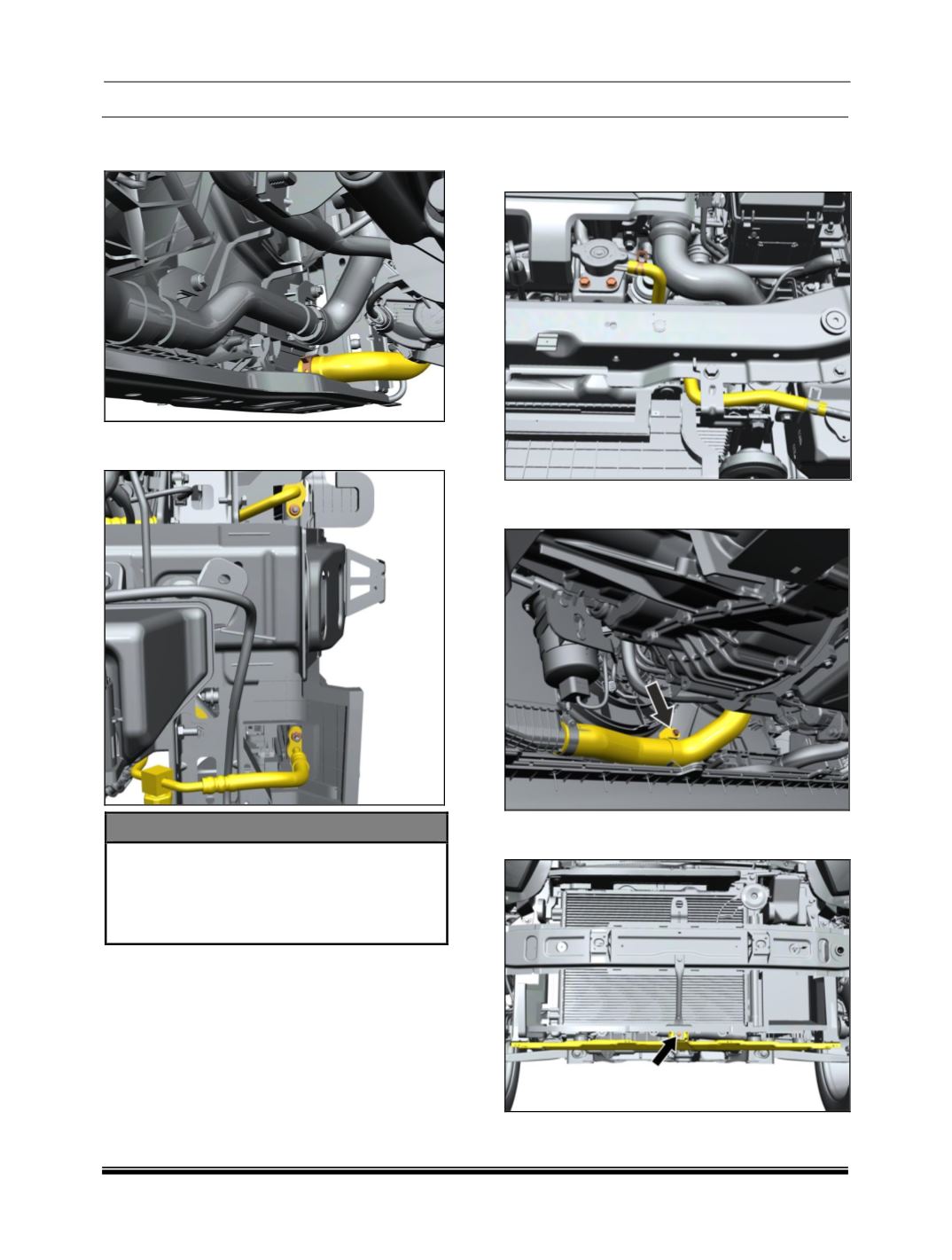

6. Remove the spring clamp and disconnect the
integral radiator hose.
7. Disconnect refrigerant lines to the condenser
assembly.
CAUTION
Never leave the condenser lines open
immediately cover them with caps,
otherwise the desiccant which is in-built in
the condenser may absorb the moisture
from surrounding air and get contaminated
8. Disconnect the overflow tube to auxiliary tank
and remove mounting bolts to the radiator
neck filler.
9. Remove the intercooler hose mounting
bracket.
10.Remove the center fastener of radiator
support.
