1.5L REVOTORQ ENGINE
96

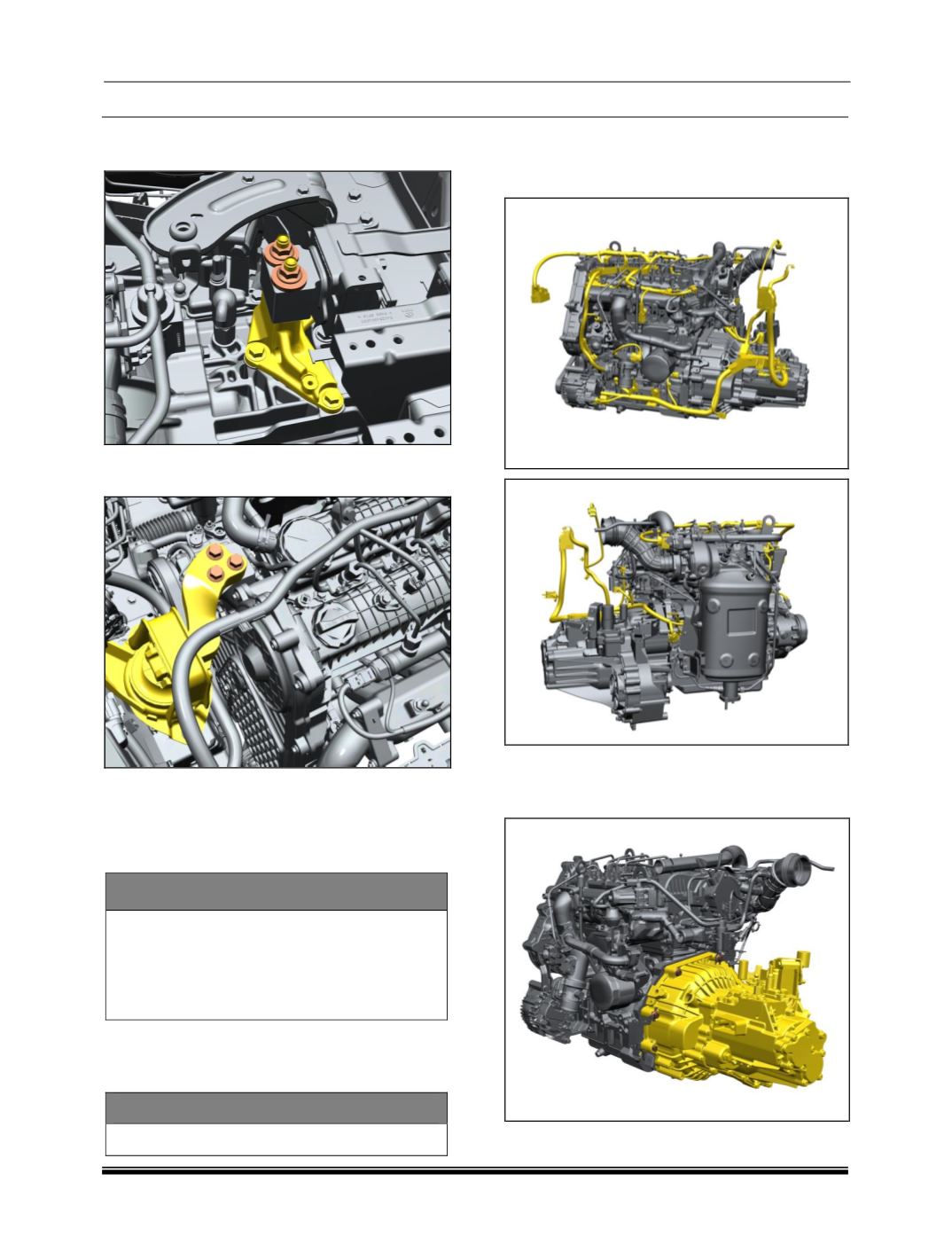

41. Loosen and remove the mounting nuts on
engine 'B' mount assembly.
42. Remove the mounting bolts of the “A” mount
assembly.
43. Using hydraulic support stand lower the
engine from engine bay and remove engine
from vehicle. (Use a suitable wooden block or
other support for additional height as
necessary.)
CAUTION
Take care when lowering the engine off the
vehicle. Verify all components and
electrical connections are disconnected
prior to raising the vehicle, or vehicle
damage occurs.
44. Now slightly lower the lift until engine and
transaxle assembly is securely placed / fix on
the support stand.
SPECIAL TOOL
Engine Support stand -:
5438 5890 2402
45. Disconnect the lifting crane from the engine.
46. Remove the engine wiring harness and
starter motor.
47. Remove the gearbox along with clutch from
the engine.
(Refer Gearbox and clutch section
for removal procedure).
