1.5L REVOTORQ ENGINE
94

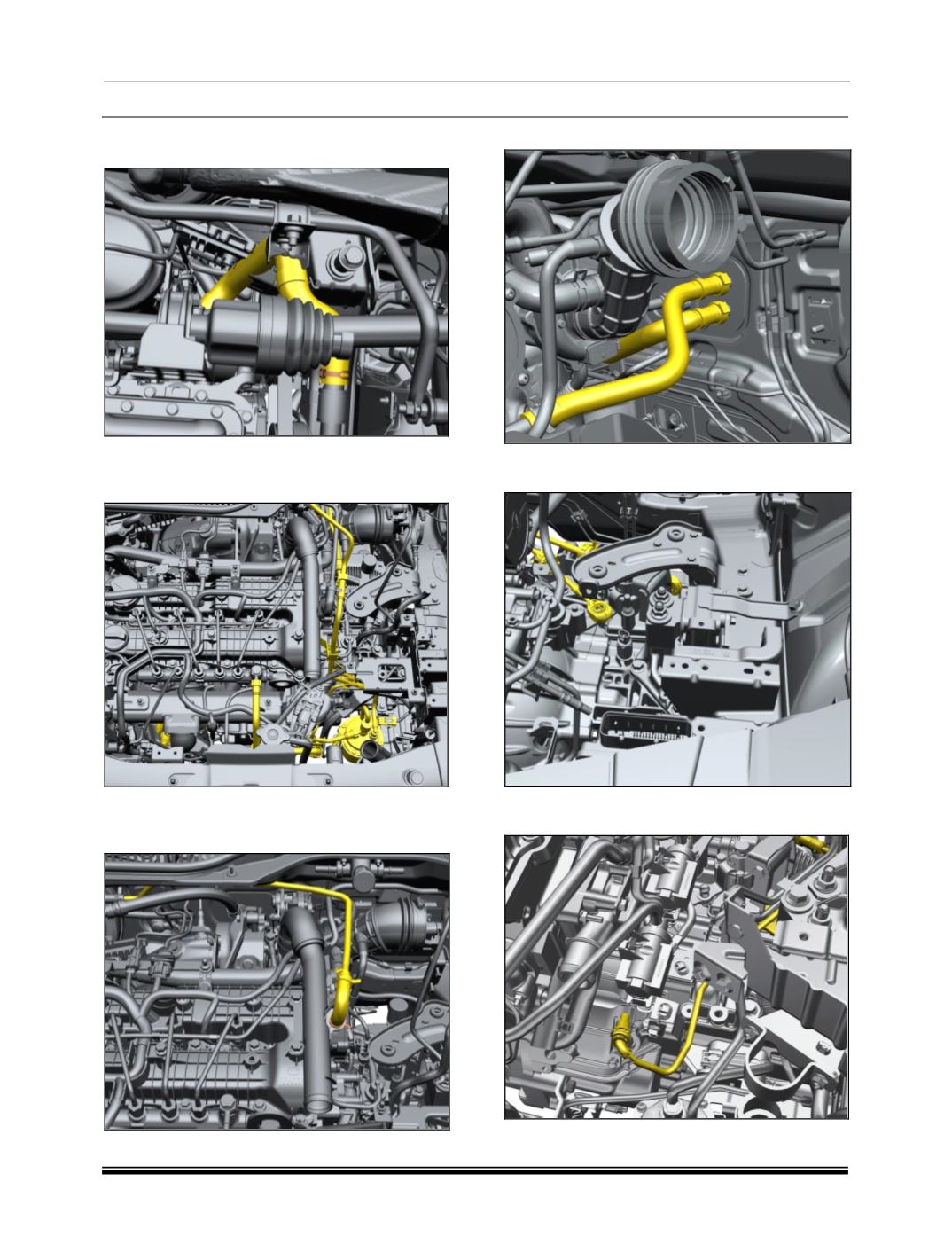

27. Similarly disconnect radiator hose connecting
water elbow from below.
28. Disconnect the fuel supply connection to HP
pump and remove the fuel filter mounted on
gearbox (
Refer fuel filter removal procedure
).
29. Disconnect and remove vacuum hose
connected between brake booster to vacuum
pump.
30. Disconnect heater hose from firewall end.
31. Disconnect the gear shift cable and selector
cable from the transaxle.
32. Disconnect the hydraulic clutch high pressure
line from the transaxle slave cylinder.
