TRANSMISSION
52

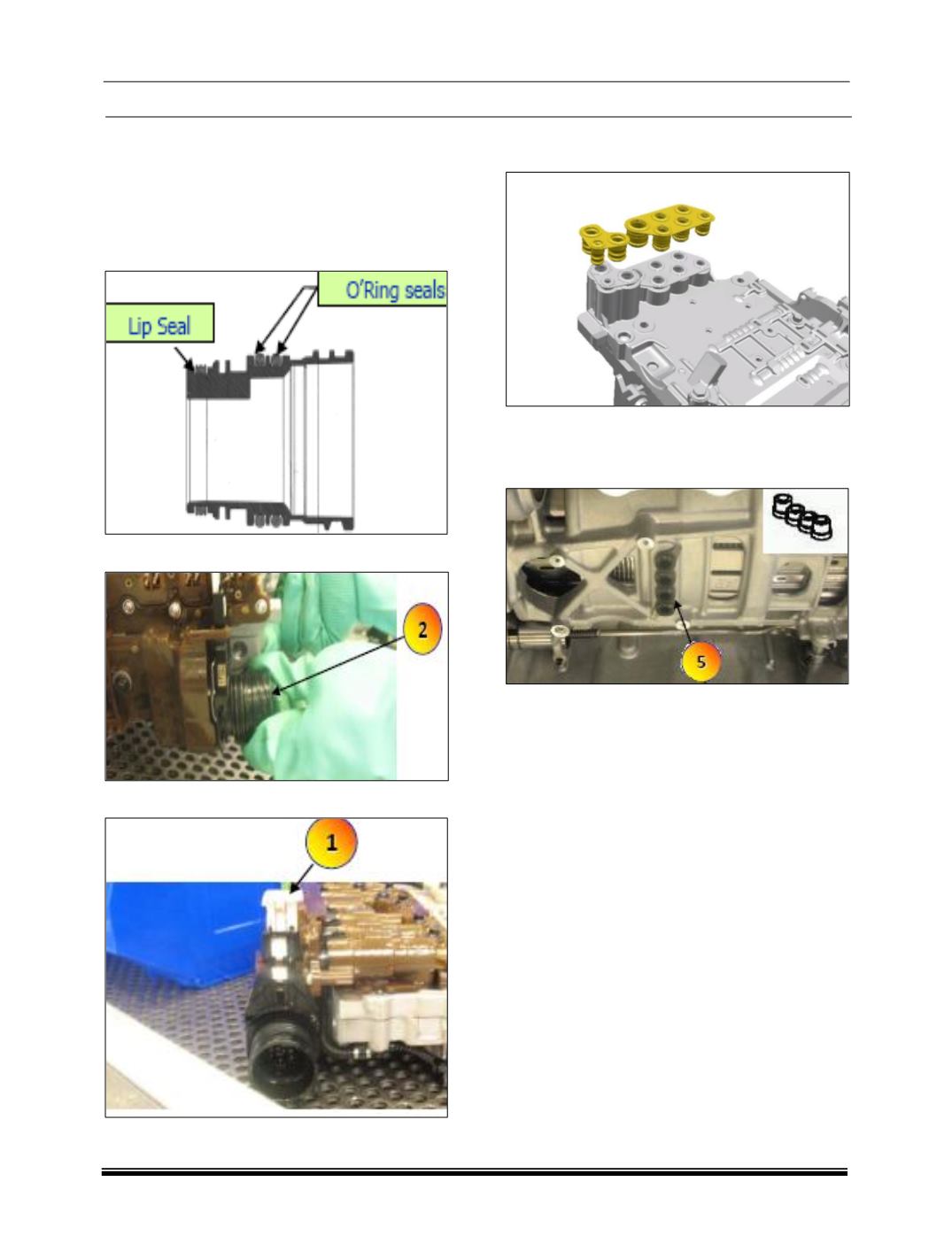

WARNING:
Do not touch the connector pins or soldered
components on the circuit board.
IMPORTANT:
Inspect the O-Ring and Lip seals for any
damages.
7. Reinstall the sleeve on connector pins.
8. Push down the slide lock.
14. Remove pump seal assembly from valve Body
assembly.
Discard the seal assembly.
15. Remove center support pump seal assembly
from Main Case.
Discard the seal assembly.
NOTE:
Remove Mechatronic when following parts need
to be removed: Selector Shaft.
