BODY
30

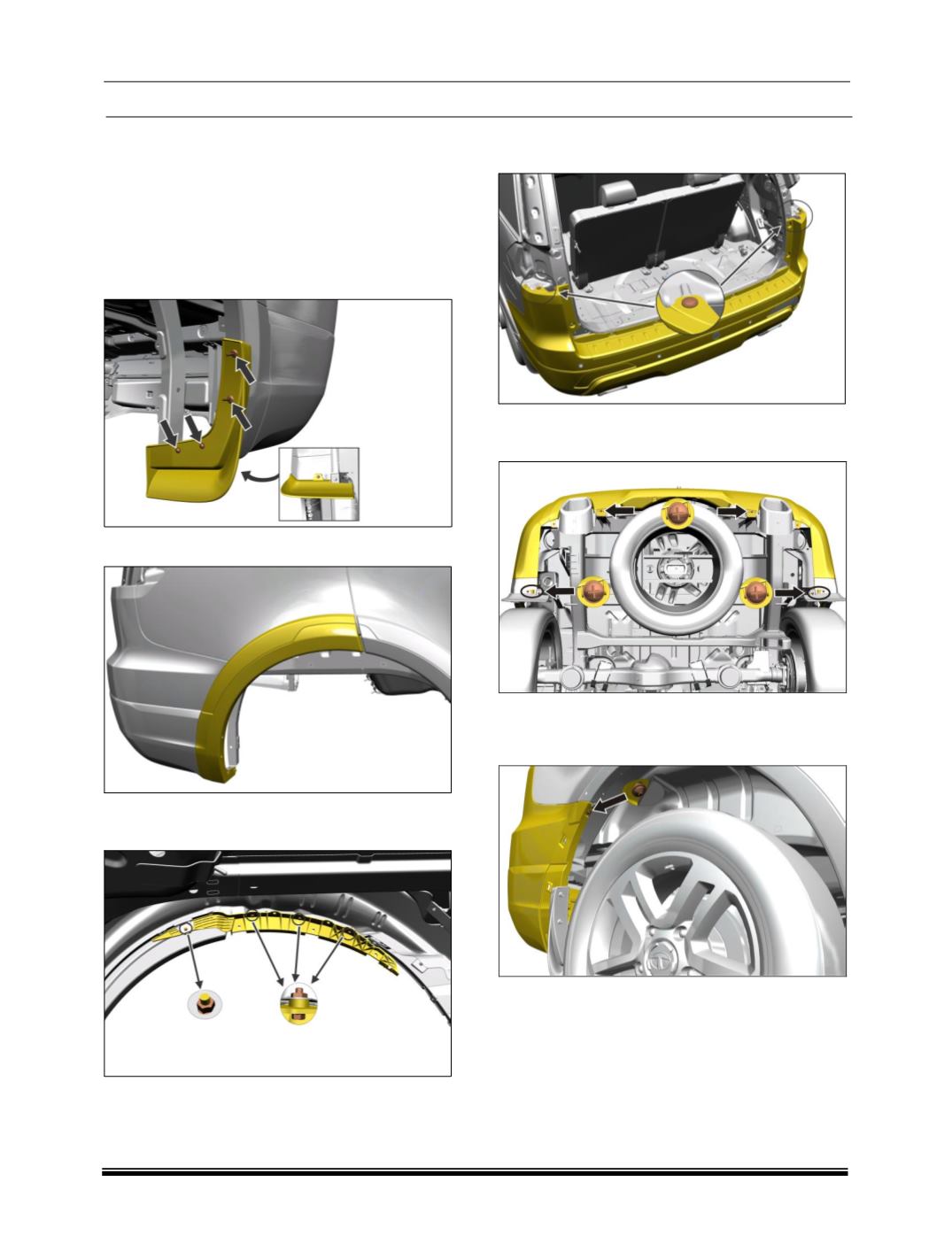

F. REAR BUMPER
REMOVAL:
1. Remove the Rear wheels for ease of
accessing the bumper fasteners
2. Open the tailgate.
3. Loosen and remove the mud flap by removing
4 plastic rivets and 1 screw.
4. Remove the cladding rear wheel arch
5. Remove the rear wheel arch mounting bracket
by removing inner and outer fasteners
6. Loosen the tail lamp screws and remove the
tail lamps by disconnecting the electrical
connectors. (Refer Electrical section for
removal of tail lamp.)
7. Remove the bumper rubber clips which are
beneath tail lamps.
8. Loosen and remove mounting screws which
are underside of body.
9. Loosen and remove screws which are inside
the wheel arch. Follow the same procedure at
the other end.
