SAFARI

TRANSFER CASE

Electric Shift Cam Parts.

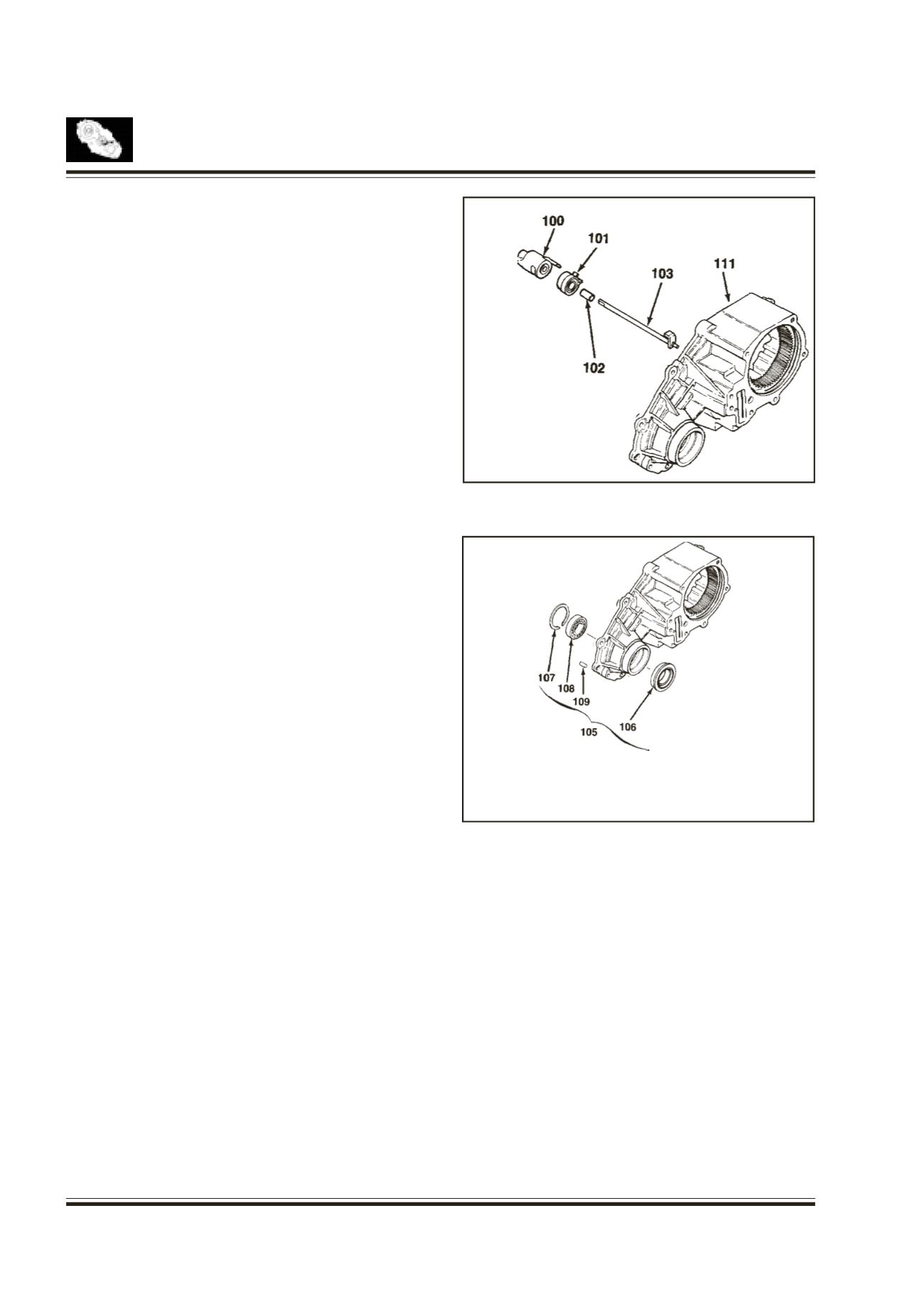

Fig. 15

Remove the electric cam shift parts from the case

assembly.

Separate the electric shift cam from the shift shaft.

Holding the shift shaft in a soft jaw, remove the torsion

spring and spacer from the shift shaft using a 1/2 “

screw driver.

Transfer Case Assembly

Fig. 16

Remove the oil seal.

Remove the retaining ring and bearing.

Remove the pin from transfer case.

Note : Do not remove ring gear

100. ELECTRIC SHIFT CAM

101. TORSION SPRING

102. SPACER

103. SHIFT SHAFT

111. TRANSFER CASE

105. TRANSFER CASE ASSY

106. OIL SEAL

107. RETAINING RING

108. BALL BEARING

109. DOWEL PIN

Fig. 16

Fig. 15
