TRANSFER CASE

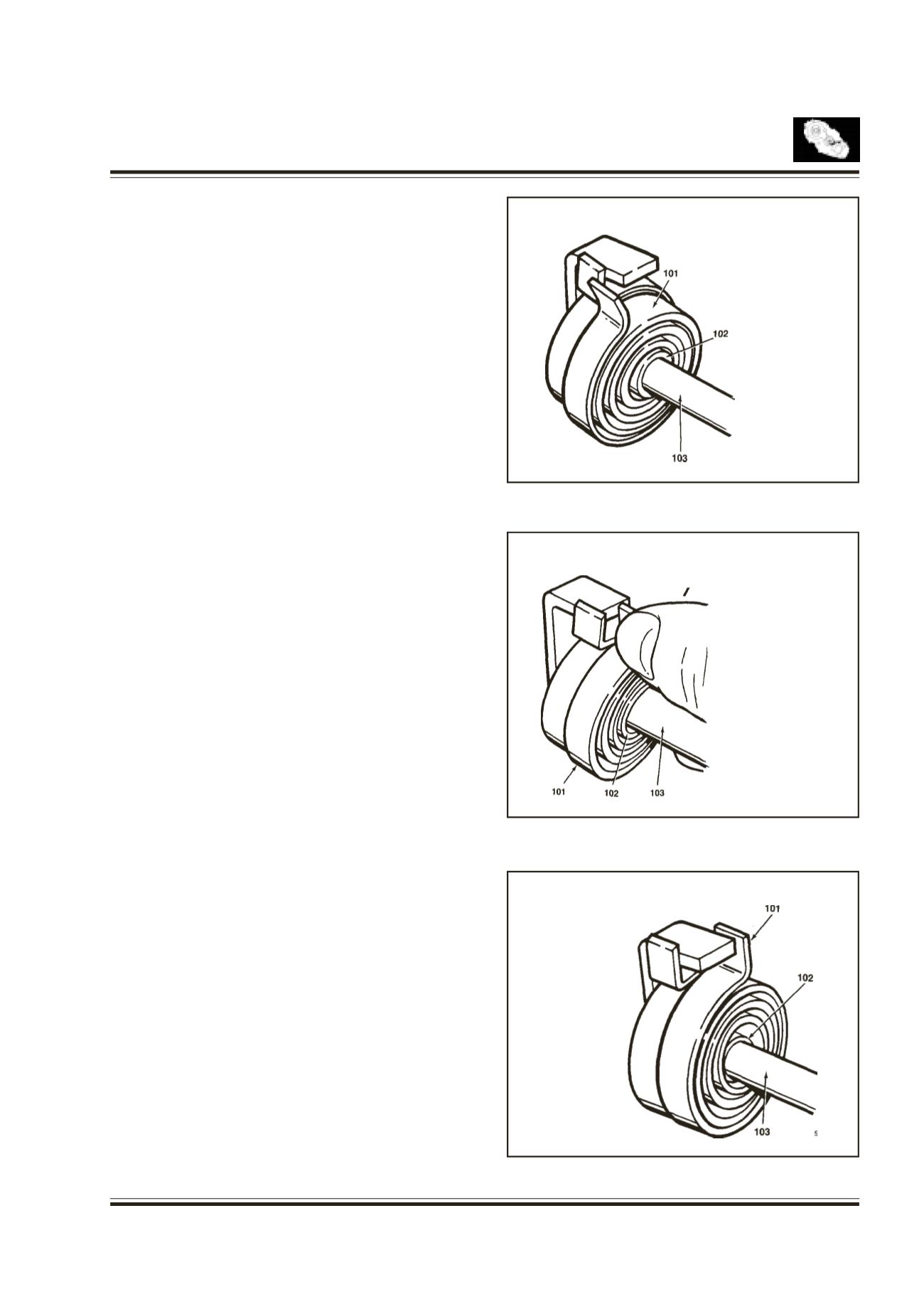

Slide the torsion spring and spacer to the left of the
shift shaft and position the end of the first spring to
fix on the drive tang.
Fig. 22
Push the end of the second spring to right and fix it
on the drive tang.
Fig. 23
Push the torsion spring and spacer back together and
fix them.
Fig. 24
Slide the electric shift cam onto the shift shaft.
Install the electric shift cam assembly into the
transfer case after installation of the shift fork.
101. TORSION SPRING
102. SPACER
103. SHIFT SHAFT
101. TORSION SPRING
102. SPACER
103. SHIFT SHAFT
101. TORSION SPRING
102. SPACER
103. SHIFT SHAFT
Fig. 22
Fig. 23
Fig. 24
