SAFARI

TRANSFER CASE

Adapter Input And Carrier Gear

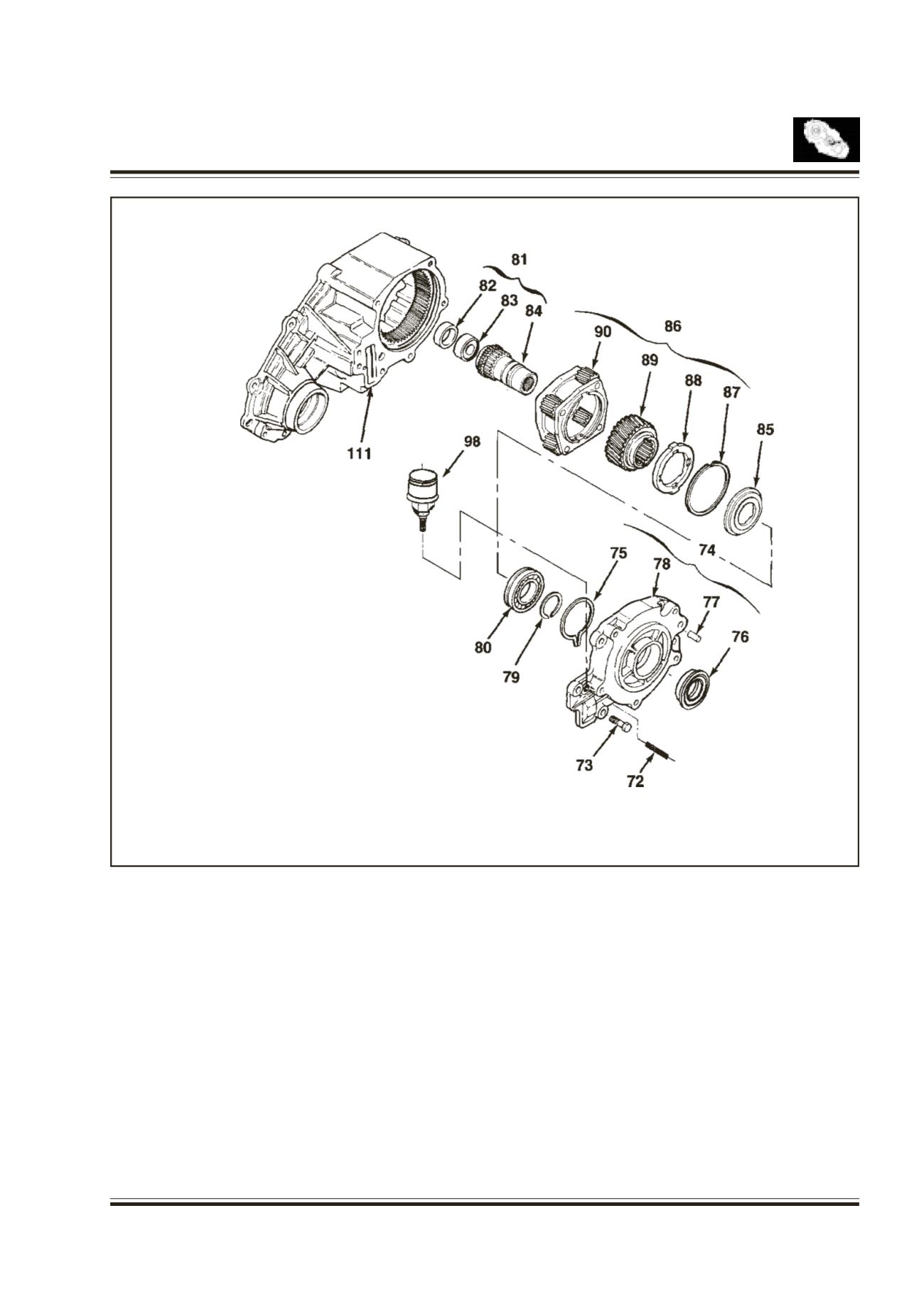

Fig. 14

Remove the breather. Remove the six bolts.

Remove the adapter by separating the adapter sealer bond (Pry front adapter, take care not to damage the

adapter or the case.)

Remove the adapter assembly, input shaft assembly and carrier gear assembly.

Remove snap ring, and oil seal from front adapter. After removing snap ring, pull out the bearing and thrust washer

form input shaft assembly and separate the input shaft assembly from carrier group assembly.

Remove the needle bearing and sleeve bearing from input shaft assembly.

Remove the retainer ring, thrust plate and sun gear from the planet carrier assembly. Do not disassemble the

planet carrier assembly.

72.

STUD

73.

BOLT

74.

ADAPTER ASSY

75.

SNAP RING

76.

OIL SEAL

77.

SPIROL PIN

78.

FRONT ADAPTER

79.

RETAINING RING

80.

BEARING

81.

INPUT SHAFT ASSY

82.

SLEEVE BEARING

83.

NEEDLE BEARING

84.

INPUT SHAFT

85.

THRUST WASHER

86.

GEAR CARRIER ASSY

87.

RETAINING RING

88.

THRUST PLATE

89.

SUN GEAR

90.

PLANET CARRIER ASSY

98.

BREATHER

111.

TRANSFER CASE

Fig. 14
