BODY
15

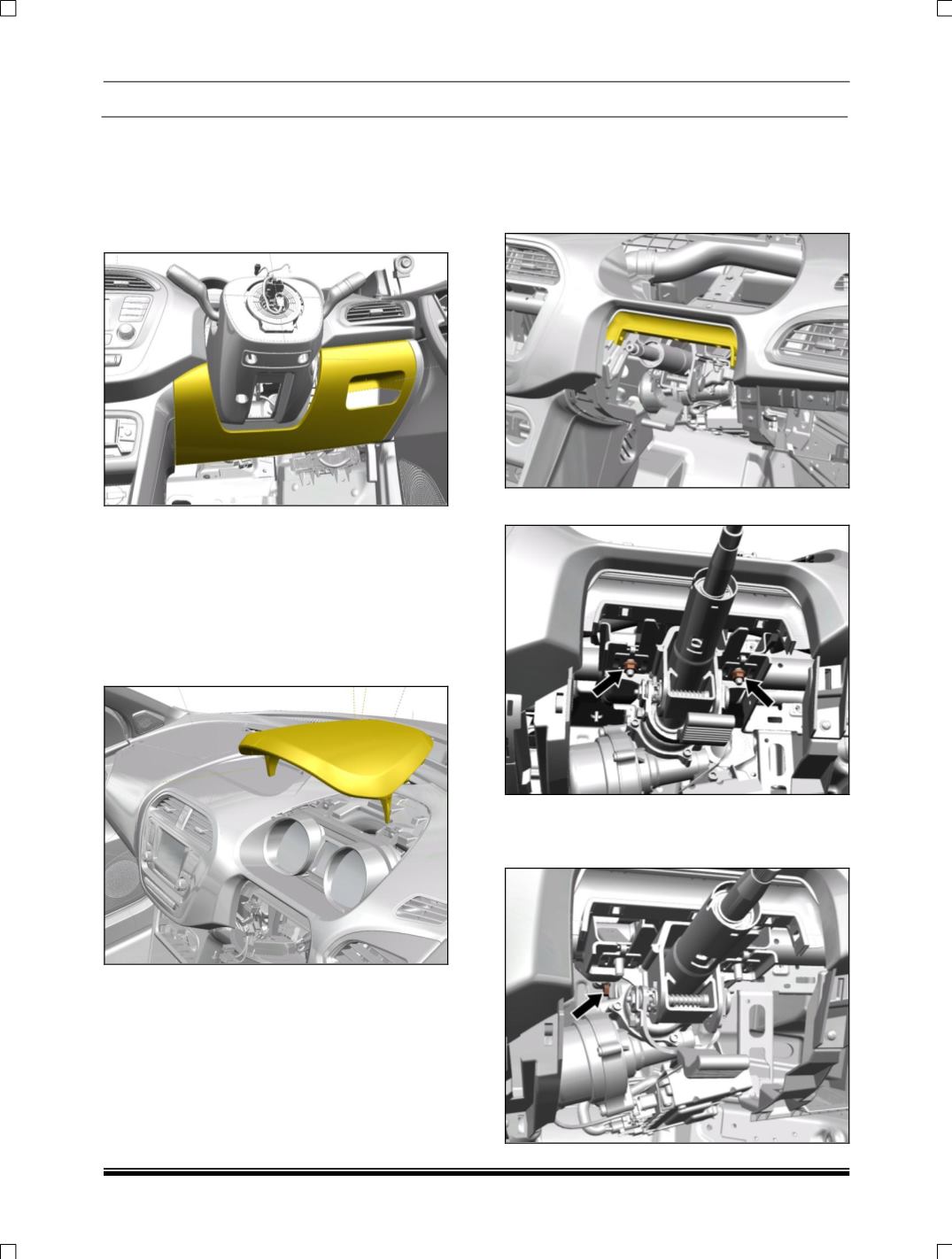

Without Cross Car Beam
1. Remove steering wheel with Driver air bag (If
applicable) (For procedure refer steering wheel
removal process in steering section.)
2. Pull out Driver lower panel.
3. Remove nacelle Assembly. (For removal refer
steering column removal process in steering
section.)
4. Remove combination switch assembly and
ignition switch assembly (For procedure refers
combination switch and ignition switch removal
process in Electrical section.)
5. Pull out instrument cluster hood.
6. Remove instrument cluster. (For procedure
refer instrument cluster removal process in
Electrical section.)
7. Pry out gap hider fitted on the dashboard sub
assembly.
8. Remove two steering column mounting nuts.
9. Remove steering column mounting bolt as
shown and lower the steering column
assembly.
