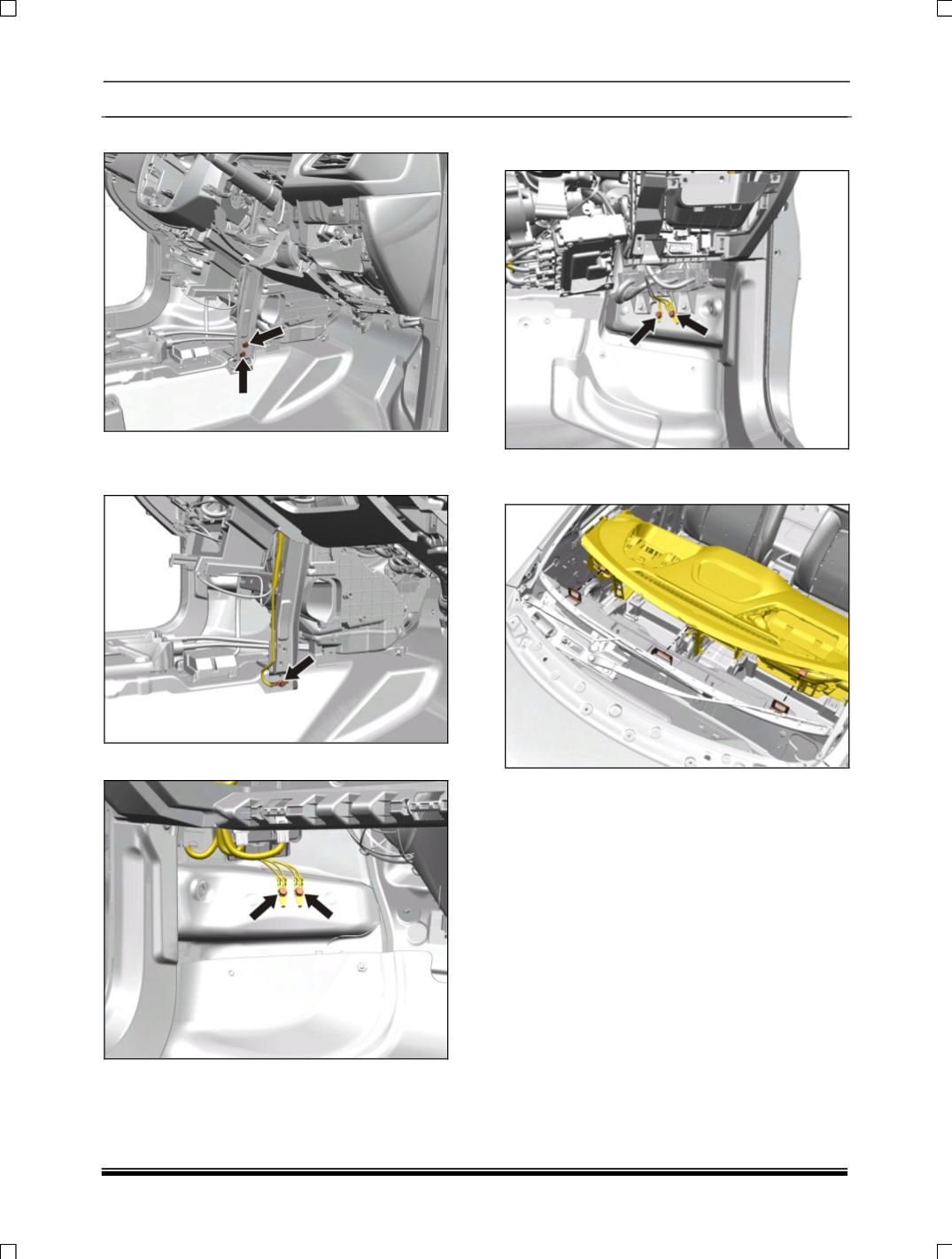

30.Remove two tunnel mounting bolt.
31.Remove all wiring harness connections.
32.Remove central ground connection.
33.Remove two ground connections near BCM.
34.Remove two ground connections near fuse
box.
35.Disengage 3 locators located on BIW plenum
panel brackets.
36.Disengage the Cross car beam (CCB) side
mounting bracket from Cross car beam CCB
locating pin.
37.Remove the dashboard, while removing
Dashboard carefully disengage HVAC system
behind the glove box.
FITMENT
For fitment follow reverse procedure of the
removal.
