BODY
18

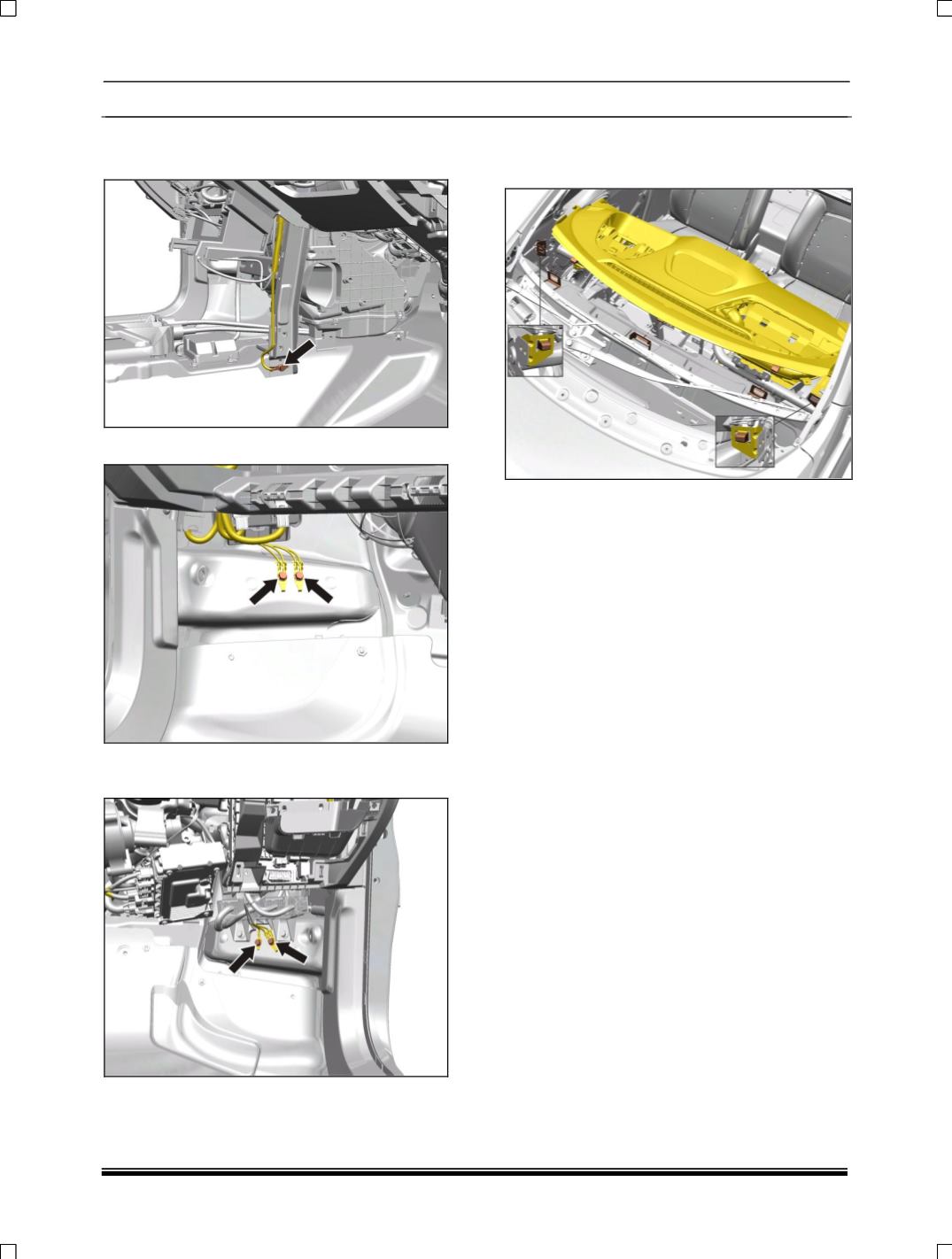

26.Remove all wiring harness connections.
27.Remove central ground connection.
28.Remove two ground connections near BCM.
29.Remove two ground connections near fuse
box.
30.Disengage three locators located on BIW
plenum panel brackets and two locaters at
front ends.
31.Remove the dashboard, while removing
Dashboard carefully disengage HVAC system
(If applicable) behind the glove box.
FITMENT
For fitment follow reverse procedure of the
removal.
