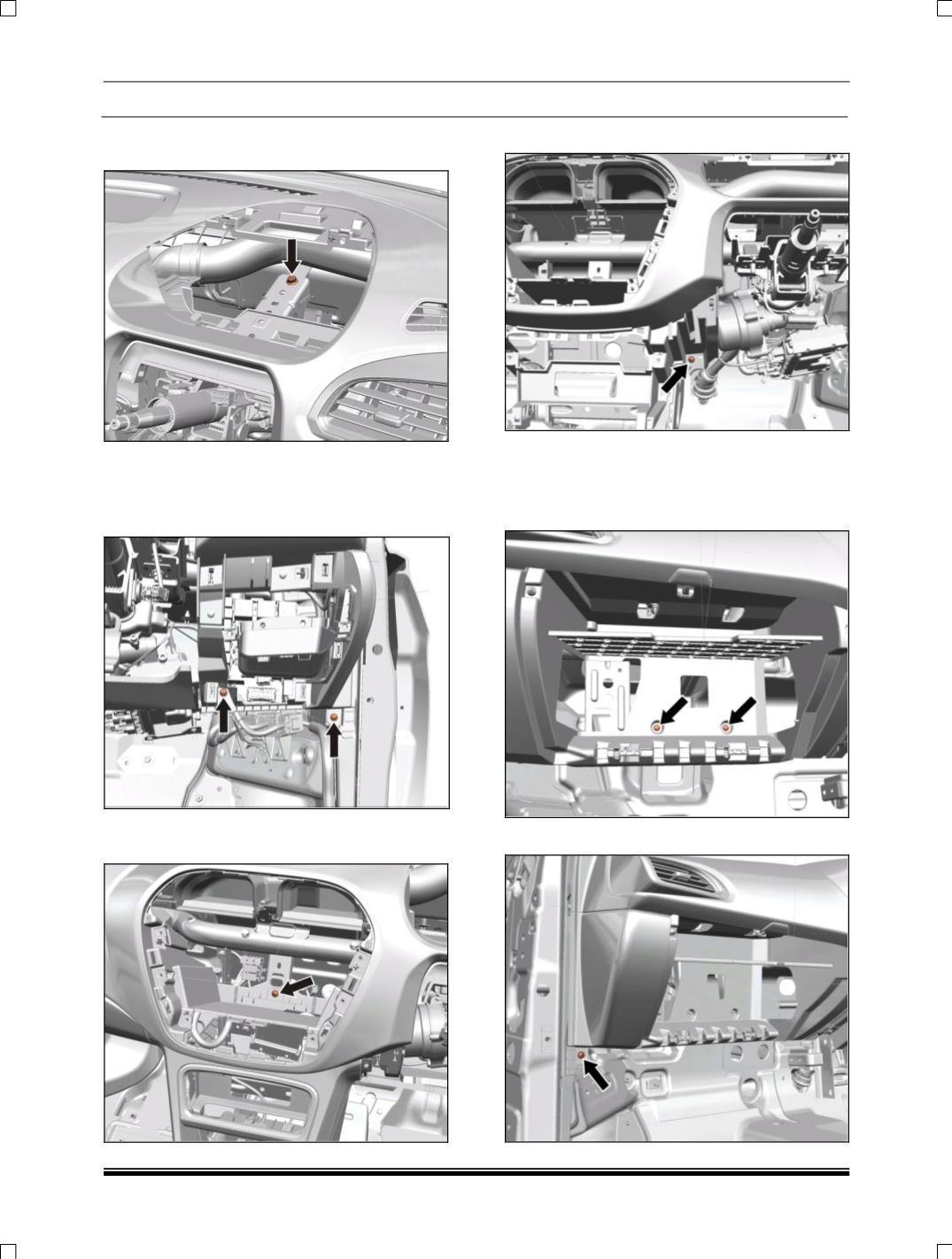

22.Remove Dashboard mounting bracket bolt
below cluster location.
23.Remove A pillar Lower trim. (For procedure
refer A pillar trim removal process.)
24.Remove two mounting screw at front of fuse
box.
25.Remove one screw located below music
system.
26.Remove one screw as shown in figure.
27.Remove glow box (For procedure refer glow
box removal process.)
28.Remove two mounting screws at glow box
location.
29.Remove one screw at front of BCM.
