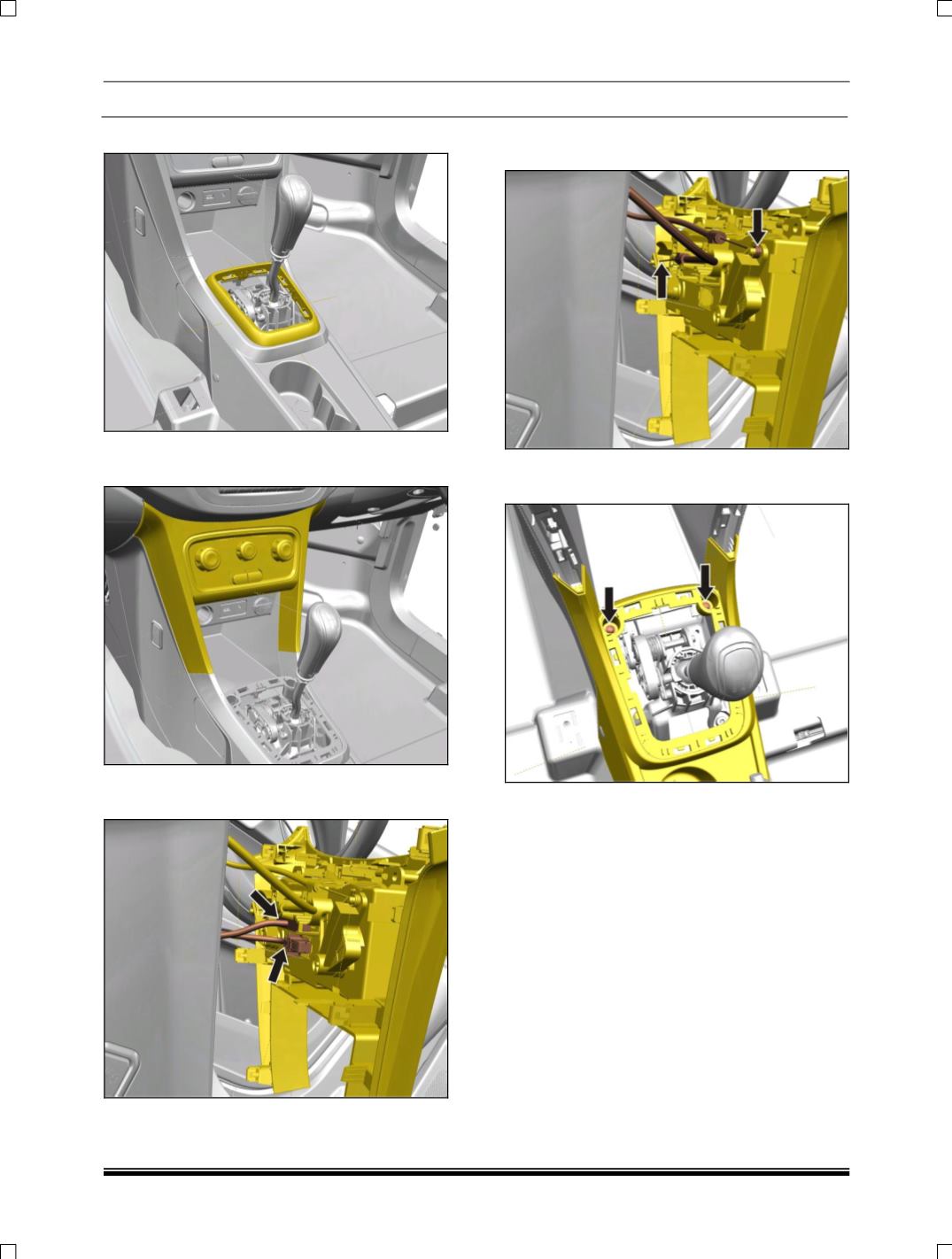

4. Pull out gear shifter bezel.

5. Pull out top console panel along with control

panel.

6. Disconnect two electrical connections behind

the control panel assembly.

7. Disconnect two connections behind the control

panel assembly.

8. Remove two rear floor console mounting

screw.

9. Remove all push rivets of rear floor console

and Pull it out from its location to unsnap from

front console.
