TIAGO

BODY

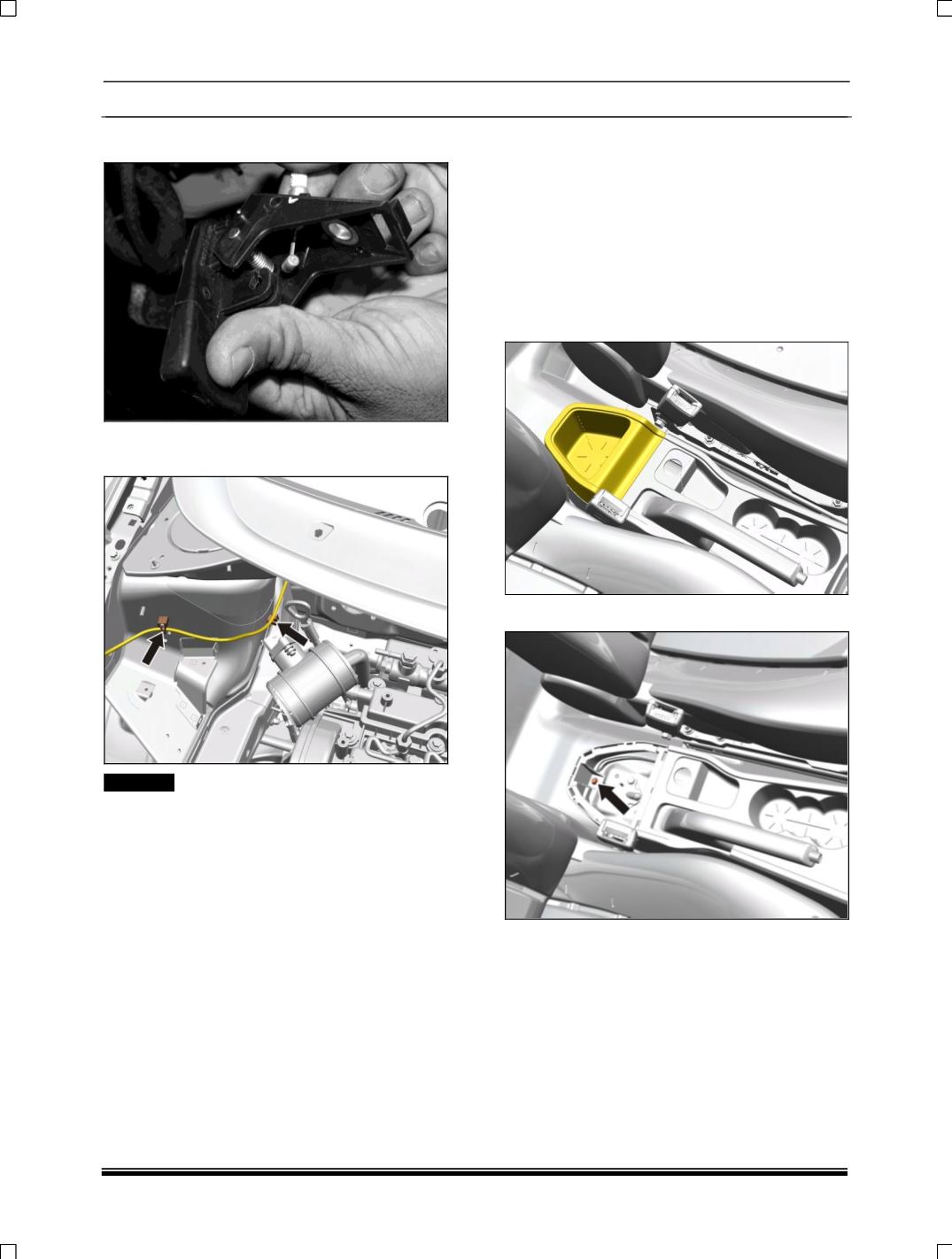

6. Disconnect the cable from hood release lever.

7. Pull out and remove the cable from the engine

compartment.

CAUTION

Do not pull the hood latch cable from inside of cab

it can damage the rubber grommet.

FITMENT

NOTE

Check the condition of the rubber grommet, if

found damaged replace the same at the time of

fitment.

For fitment follow the reverse procedure of

removal.

9.2.2 FLOOR CONSOLE

REMOVAL

NOTE

For ease of removal and fitment the hand brake

cable can be loosened from the rear end. (For the

hand brake adjustment, refer brake section.)

1. Remove the gear lever boot.

(For procedure

refer the gear lever boot removal process.)

2. Remove rear cup holder console.

3. Remove rear screw of central floor console.
