Turn RH Ind
16
Wash Rear Pump Cntrl
17
Position Lmp Cntrl RH
18
Batt Saver Cntrl
19
Fog Lmp Ctrl Frnt RH
20
-
21
-
22
-
23
-
24
-
25
-

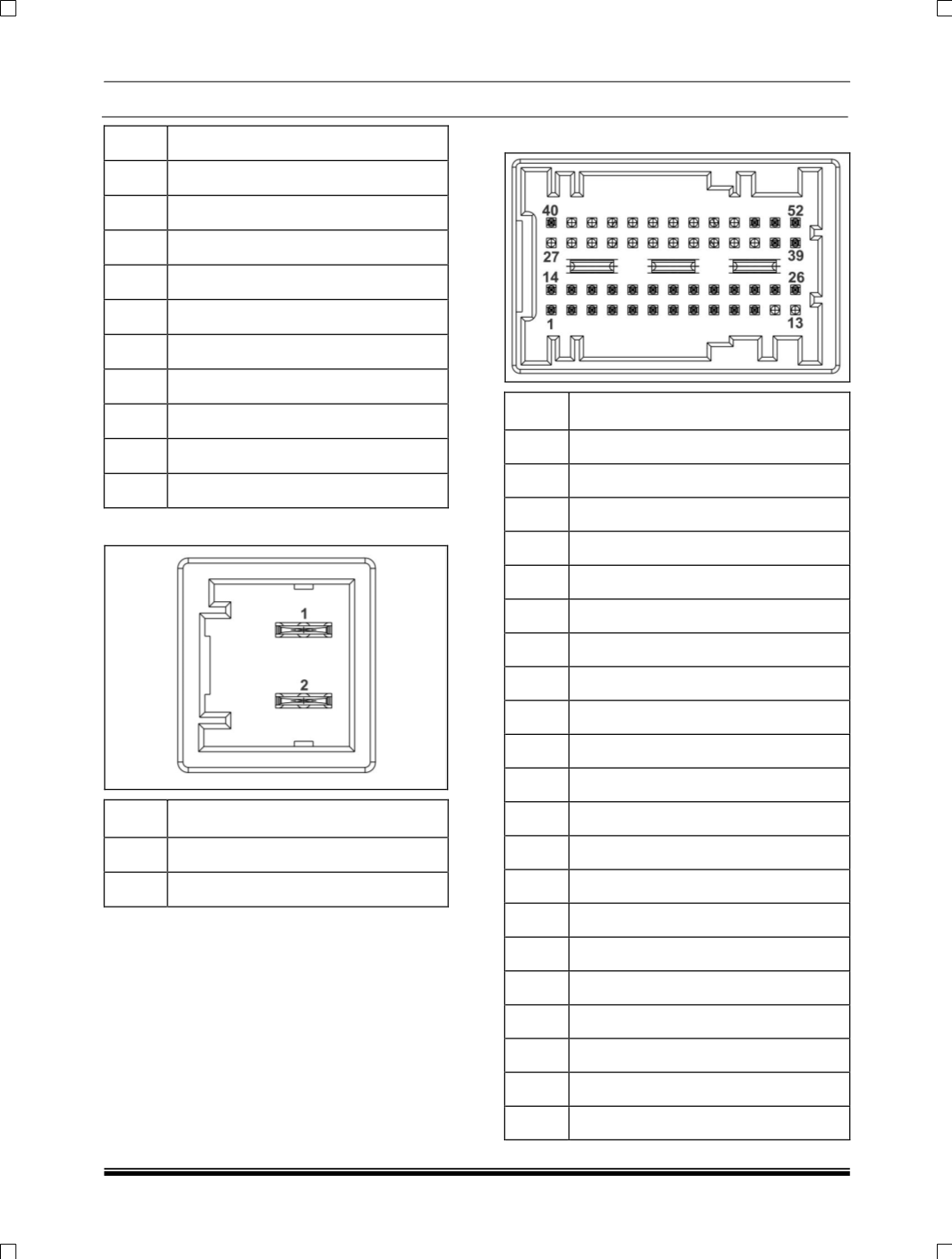

CONNECTOR C
PIN
DETAILS
1
Power Supply 2
2
Power Supply 1
CONNECTOR D
PIN
DETAILS
1
Wpr Frnt Low High Relay Cntrl
2
Global Closing Sig
3
Cent Lock Internal Switch Sig
4
Bonnet State
5
Rr RH Door State
6
Low Beam Switch Sig
7
Wpr Frnt Low Spd Sig
8
Mirror Fold Unfold Sw
9
Smart Entry Wak Up Sig
10
Spare3
11
Auto Light ON Sig
12
-
13
-
14
Key Hole LED Cntrl
15
Tailgate State
16
Cent UnLock Internal Switch Sig
17
Rr LH Door State
18
Main Beam Smitch Sig
19
Wpr Frnt High Spd Sig
20
Cockpit dimming Sig
21
Crash Signal PWM
