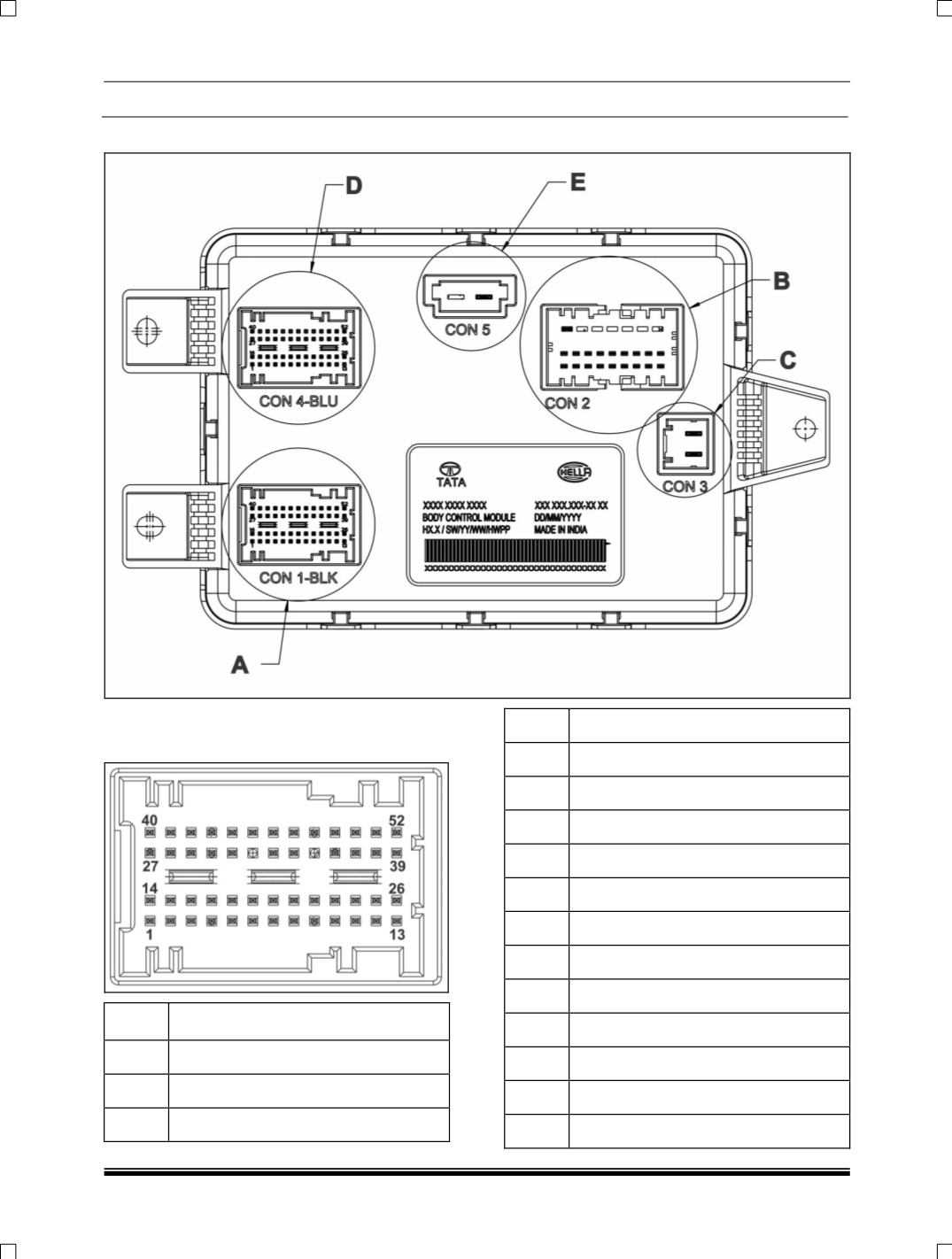

CONNECTION DETAILS:
PINOUT DETAILS:
CONNECTOR A
PIN
DETAILS
1
Driver Door State
2
Transport Link Signal
3
Door Latch Set Switch Signal Driver
4
Headlamp ON Sig
5
Wiper Rear park signal
6
ESS Switch Signal
7
Turn RH Switch Signal
8
Driver Door Unlock Sig
9
Ignition Key State IGN
10
Key lN Signal
11
Infotainment Removal Detection
12
Wash Rear Switch Sig
13
Wpr Rear Mode Switch Sig
14
Co-Dr Door State
15
Position Lmp Sw Sig
16
Door Latch Reset Switch Sig Drvr
