753 / 1002
ELECTRICAL
132
17
Spare1
18
Wpr Frnt Park Sig
19
Turn LH Sw Sig
20
Dr Door Lock Sig
21
Ign Key State CRANK
22
Brake Light Sw Sig
23
Ign Key State ACC
24
Wash Frnt Switch Sig
25
Wpr Frnt Switch Sig lnterm
26
Crash Signal_HW
27
Door Unlock Ctrl Driver
28
Hazard Sw LED Sig
29
Door Lock Ctrl All
30
Horn Sig
31
Head Lmp Low Beam Relay
32
-
33
Internal GND1
34
BattGND1
35
-
36
Wpr Frnt Spd Switch Sig
37
Fog Lmp Frnt Switch Sig
38
Amb Light Sw Sig
39
Rev Gear Sig
40
Wpr Frnt On Off Relay Cntrl
41
Wpr Rear Relay Ctrl
42
Door UnLock Ctrl Others
43
Wake Up lnput
44
Fr Fog Lmp Relay
45
Rr Defogger Relay Cntrl
46
lnternal_12V
47
Batt GND 2
48
CAN_Chassis_H
49
CAN_Chassis_L
50
Fog Lmp Rear Switch Sig
51
Rr Defogger Sw Sig
52
Hazard Sw Sig

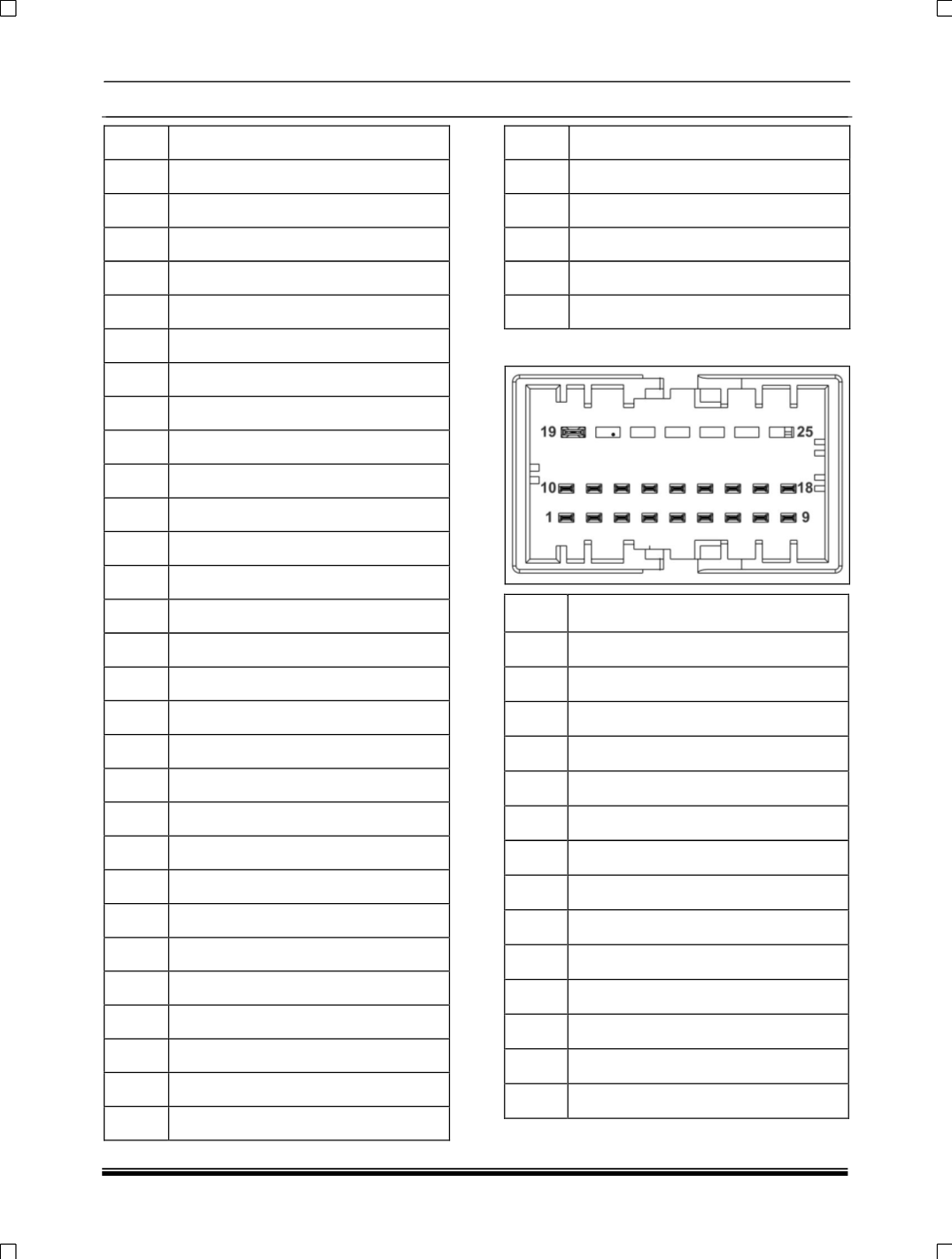

CONNECTOR B
PIN
DETAILS
1
Rev Lamp Sig RH
2
Rr Fog Lmp Cntrl LH
3
Fr Roof Lmp Ctrl
4
Acc Delay Cntrl
5
Rr Fog Lmp Cntrl RH
6
Position Lmp Cntrl LH
7
Wash Frnt Pump Ctrl
8
Turn LH lnd
9
Brake Lmp Sig LH
10
Fog Lmp Ctrl Frnt LH
11
Rev Lamp Sig LH
12
Door Pocket LED Out
13
Footwell LED Out
14
Brake Lmp Sig RH
