BRAKES

38

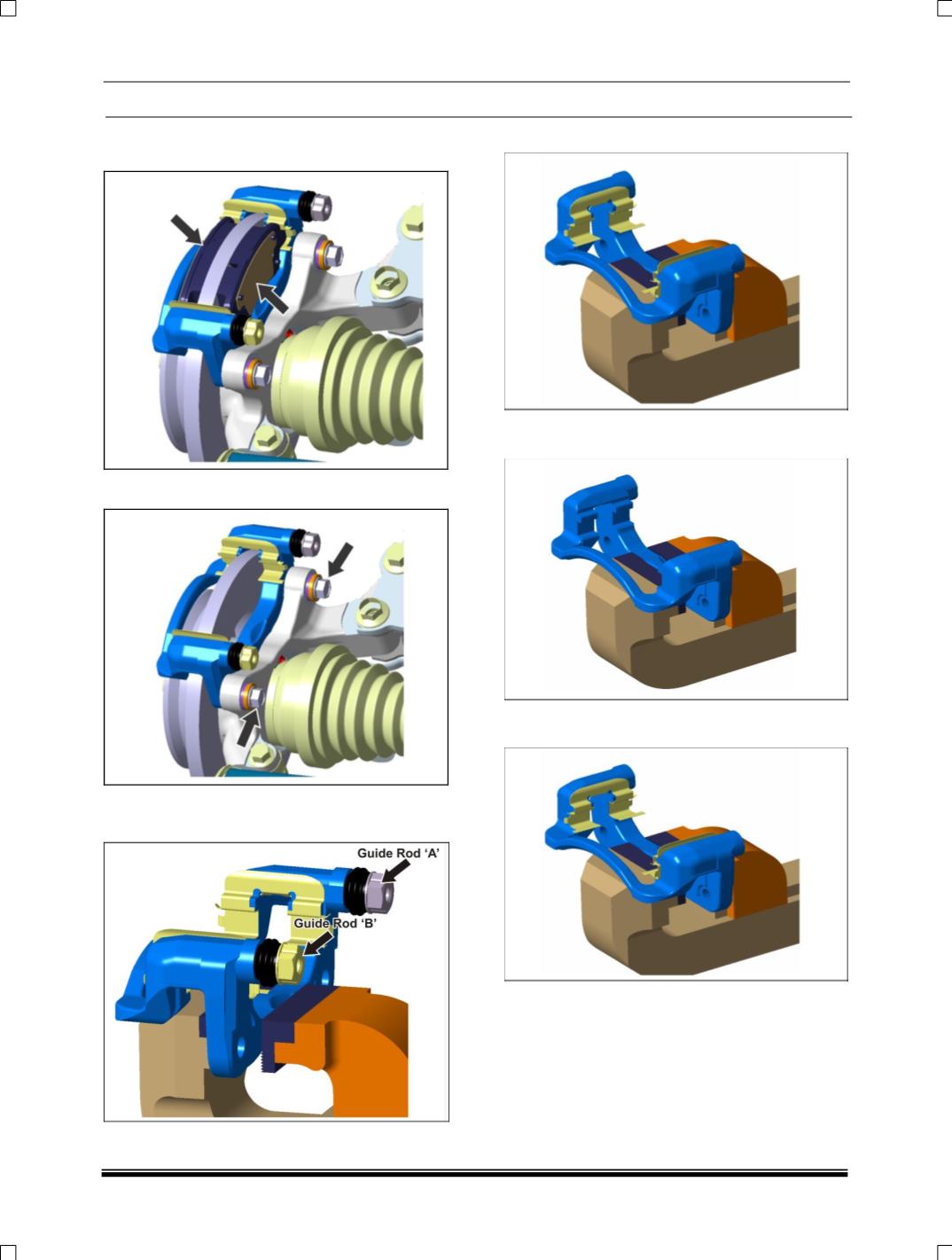

REMOVAL OF CARRIER

1. Remove brake pads from carrier assembly.

2. Remove bolts from knuckle to remove carrier.

3. Remove boot guide rods, guide rod A and

guide rod B.

4. Remove pad spring.

ASSEMBLY OF CARRIER

1. Hold carrier in the holding device firmly.

2. Assemble the new pad spring the carrier on

both leading side and trailing side.
