6.13 REPAIRS

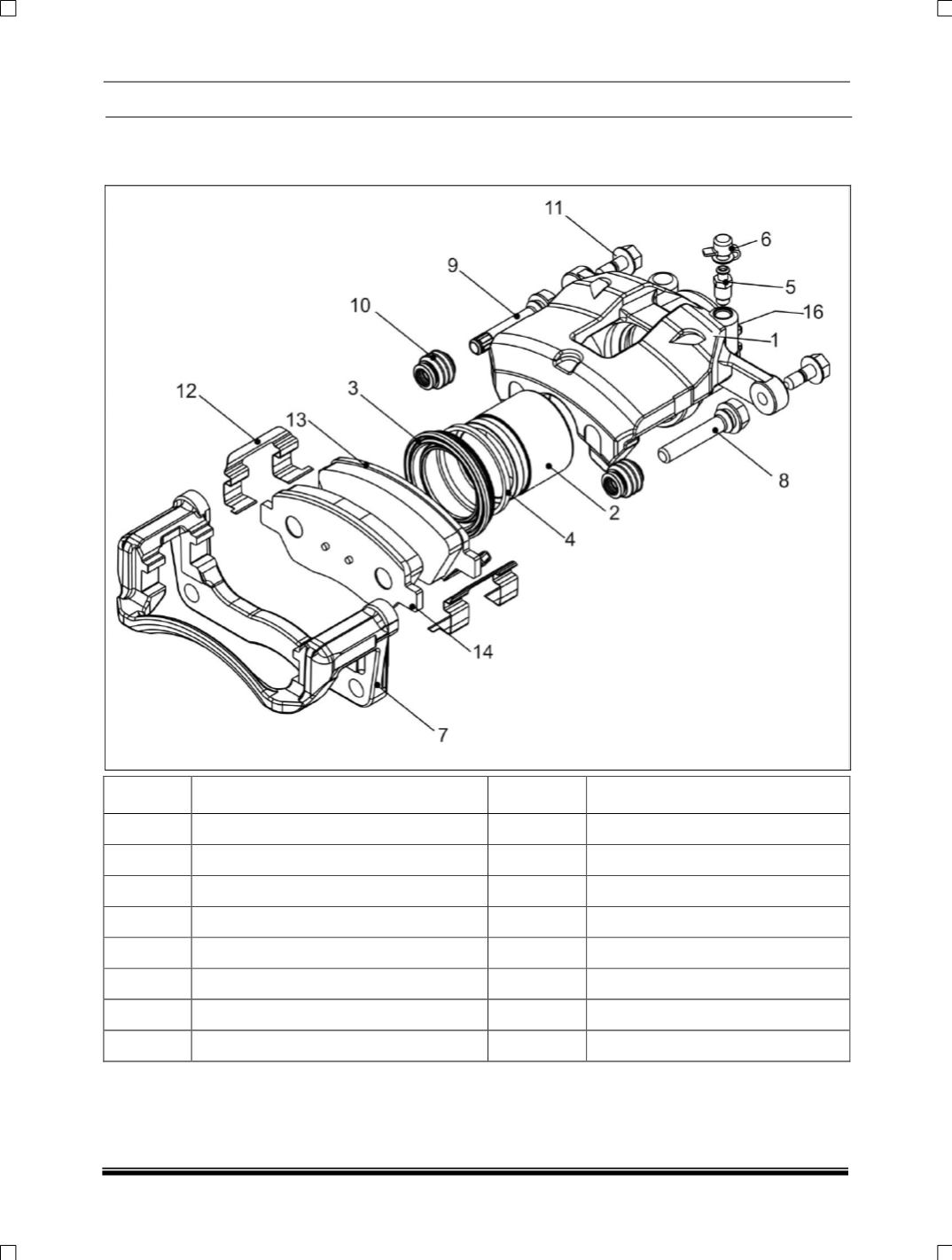

CALIPER BRAKE ASSSEMBLY
ITEM NO
DESCRIPTION
ITEM NO
DESCRIPTION
01
CYLINDER MACHINING
09
ASSEMBLY GUIDE ROD B
02
PISTON
10
BOOT GUIDE ROD
03
BOOT PISTON
11
BOLT GUIDE ROD
04
SEAL PISTON
12
SPRING PAD
05
BLEED SCREW
13
PAD KIT INNER
06
CAP BLEED SCREW
14
PAD KIT OUTER
07
CARRIER MACHINING
15
PROTECTIVE PLUG
08
GUIDE ROD A
16
GREASE SACHET
